SubstiTUBE Flyer

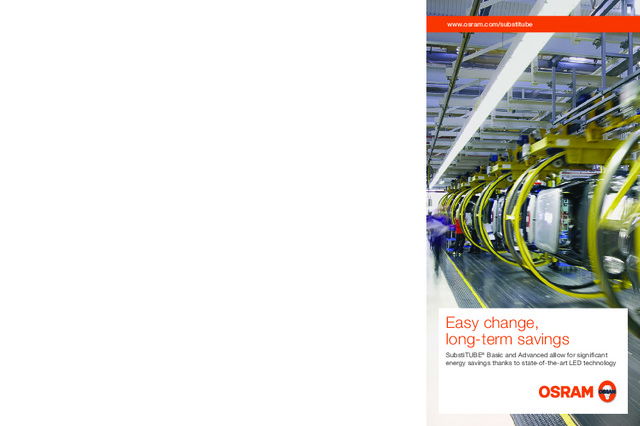

OSRAM GmbH Head Ofﬁ ce: Marcel-Breuer-Strasse 6 80807 Munich Phone +49 (0)89-6213-0 Fax +49 (0)89-6213-20 20 www.osram.com www.osram.com/substitube www.osram.com Installation instructionThe lamp replacement can be carried out easily, quickly and safely at the CCG, without rewiring. Only the starter and lamp have to be replaced – just like during regular mainte-nance. That way, the luminaire stays as safe as before. 1 Make sure that the supply voltage is disconnected 2 Turn the conventional ﬂ uorescent lamp through 90° 3 Carefully remove the lamp from the socket 4 Remove the conventional starter by turning it as well 5 Insert and turn the SubstiTUBE ® Start into the socket 6 Insert the SubstiTUBE ® into the socket 7 Lock it into position by turning it through 90° 8 Check the light emission direction Easy change, long-term savings SubstiTUBE ® Basic and Advanced allow for signiﬁ cant energy savings thanks to state-of-the-art LED technology OSRAM | SubstiTUBE ® It’s adding up thanks to the sum of all advantages SubstiTUBE ® Basic and Advanced are characterized by high quality, reliability and outstanding photometric features. In a wide variety of applications, they show that nowadays, the changeover to state-of-the-art LED technology is actually very easy. Your beneﬁ ts: — Real retroﬁ t solutions for classic T8 ﬂ uorescent lamps in CCG luminaires 1), 2) — Easy, fast and safe replacement without rewiring — Energy savings of up to 68 % compared to a 1.5 m T8 ﬂ uorescent lamp 3) — Up to ﬁ ve times longer lifetime than conventional ﬂ uorescent lamps 4) Lamp type T8 fluorescent lamp 1.5 m SubstiTUBE ® Basic ST8-HB5 Number of lighting outlets 1 unit 1 unit Average lifetime 13,500 h 40,000 h Power consumption 0.068 kW 0.023 kW Power consumption after 12 months 297.0 kWh 100.4 kWh Savings after 1 year 23.59 EUR 1) Only for use in CCG luminaires, not dimmable 2) Due to the characteristic light distribution of the SubstiTUBE ® , the resulting luminaire light characteristic is likely to change. Please check if standards for lighting at working places, e.g. in ofﬁ ces, will be complied with after replacement. 3) SubstiTUBE ® Basic 4) Depending on type of lamp and control gear Basis of assumption: Electricity rate EUR 0.12/kWh, hours of operation per day/year: 12 h/4368 h Impressive: Replacing only one conventional LUMILUX ® T8 ﬂ uores- cent lamp by a SubstiTUBE ® Basic ST8-HB5 saves 23.59 euros per year. Further information on our SubstiTUBE ® products can be found in the data sheets at www.osram.com/substitube 400R134EN T echnical modiﬁ cations and err ors excepted.

OSRAM | SubstiTUBE ® SubstiTUBE ® Basic Dimensions Length: 590 mm, 1200 mm, 1500 mm Base G13 Light quality — Uniform illumination — Wide beam angle of 160° — Instant-on light, therefore ideally suitable in combination with sensor technology Light colors and CRI 3000 K/CRI 80 4000 K/CRI 80 6500 K/CRI 80 Lifetime 5) Up to 40,000 h Luminous flux (4000 K) and power consumption ST8-HB2: 900 lm/9 W ST8-HB4: 1900 lm/18 W ST8-HB5: 2200 lm/22 W Efficiency Up to 105 lm/W Product benefits — For simple lighting requirements — Energy efficiency A+ 6) — Energy savings of up to 68 % compared to a 1.5 m T8 fluorescent lamp — High switching cycles — Mercury-free and RoHS-compliant — Type of protection: IP20 Product reference Order number ST8-HB2-080-830 6) 4052899913912 ST8-HB2-090-840 4052899913929 ST8-HB2-090-865 4052899913936 ST8-HB4-175-830 4052899913943 ST8-HB4-190-840 4052899913950 ST8-HB4-190-865 4052899913967 ST8-HB5-200-830 6) 4052899913974 ST8-HB5-220-840 4052899913981 ST8-HB5-220-865 4052899913998 SubstiTUBE ® Advanced Dimensions Length: 590 mm, 1200 mm, 1500 mm Base G13 Light quality — Uniform illumination — Wide beam angle of 130° — Instant-on light, therefore ideally suitable in combination with sensor technology Light colors and CRI 3000 K/CRI 80 4000 K/CRI 80 6500 K/CRI 80 Lifetime 5) Up to 40,000 h Luminous flux (4000 K) and power consumption ST8-HA2: 1100 lm/10 W ST8-HA4: 2200 lm/20 W ST8-HA5: 3300 lm/30 W Efficiency Up to 110 lm/W Product benefits — For demanding lighting requirements with high luminous flux — Energy efficiency A+ — Energy savings of up to 61 % compared to a 0.6 m T8 fluorescent lamp — High switching cycles — Mercury-free and RoHS-compliant — Type of protection: IP20 Product reference Order number ST8-HA2-100-830 4008321993410 ST8-HA2-110-840 4008321993434 ST8-HA2-110-865 4008321993458 ST8-HA4-200-830 4008321993472 ST8-HA4-220-840 4008321993496 ST8-HA4-220-865 4008321993519 ST8-HA5-300-830 4008321993533 ST8-HA5-330-840 4008321993557 ST8-HA5-330-865 4008321993571 5) L70B50 – remaining luminous ﬂ ux of 70 % compared to the initial luminous ﬂ ux at 50 % of the installed lamps. 6) Energy Efﬁ ciency Class A for operation with magnetic ballast for ST8-HB2-080-830 and ST8-HB5-200-830. SUITABLE FOR SIMPLE LIGHTING REQUIREMENTS SUITABLE FOR DEMANDING LIGHTING REQUIREMENTS OSRAM | SubstiTUBE ® Changing pays off more and more each day With state-of-the-art LED technology, SubstiTUBE ® Basic and Advanced open up great potential for energy savings. Due to the well-known T8 lamp form, luminaires equipped with a conventional control gear can be retroﬁ tted in no time at all. That way, the demand for electricity can be lowered considerably without sacriﬁ cing comfortably warm and homogeneous light. Easy entry into LED technologySubstiTUBE ® lamps are especially suitable for lighting systems with high operating hours because they pay back quickly due to their low energy consumption and low main-tenance costs. Moreover, they immediately provide the full light output – an ideal feature for combination with motion sensors. While SubstiTUBE ® Basic is usually applied for rather simple lighting requirements, SubstiTUBE ® Advanced is the best choice for demanding applications thanks to its considerably higher luminous ﬂ ux. Especially in locations with high operating hours such as corridors of ofﬁ ce buildings, underground parking lots and industrial ﬁ rms, SubstiTUBE ® Basic and Advanced reduce energy and maintenance costs signiﬁ cantly.
