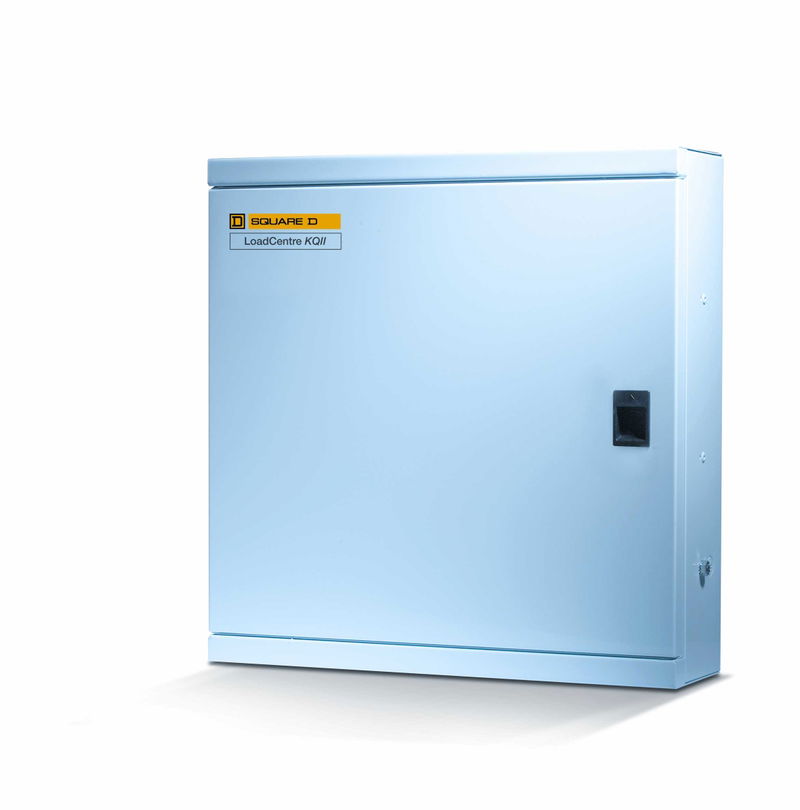

Improved modularity, unrivalled safety and guaranteed connections, the refined LoadCentre KQII is the choice of the professional.
With the ability to use simple combinations to meet detailed project requirements, and IPX2 fingersafe technology, LoadCentre KQII delivers everything you need for a fast, safe and reliable installation.
A multi function metering kit is also available for the LoadCentre KQII 3 phase distribution boards. The kit comprises of an extension box to be fixed to the bottom of the distribution board. All fixings and interconnections are supplied. All components, except three single pole MCB’s, are supplied fully fitted and wired. The MCB’s are fitted on the distribution stack and connect to a prepared wiring loom.
The LoadCentre KQII distribution board provides Safety, High Performance, Versatility, Easy Installation and Extensive Choice:
• Manufactured and tested to BS EN 60439 parts 1 and 3.
• Maximum busbar rating 125A.
• Voltage rating 400/415V AC.
• External IP3X protection to BS EN 60529.
• IP2XB finger safe with door and cover removed to BS EN 60529, provided by permanent, non removable, factory fitted barriers.
• Fully shielded neutral bars.
• Earth and neutral bar cables capacity 25mm².
• All incoming devices fit integral to the board, no extension boxes required.
• All incoming connections are the same length i.e. 4 pole configuration.
• Range of integral incomers for all applications including lugs, switches and RCCB’s.
• Outgoing MCB’s available up to 63A B, C or D curves.
• 18mm RCBO available, minimising use of outgoing ways.
• Plug-On outgoers for speed of installation and guaranteed connection.
• All B boards accept DIN control products (timers, contactors) in any unused outgoing way without adaptation.
• Control wiring cable way integrated to moulding.
LoadCentre KQII-The distribution board professionals count on
