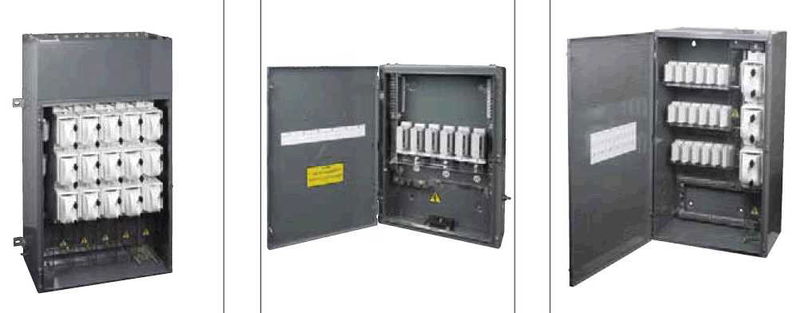

The MODE range of electrical equipment from Merlin Gerin, a brand of Schneider Electric, provides indoor, wall mounted, low voltage distribution up to 500A. 13 options are available off-the-shelf, all with a compact design to be installed in areas used by the general public.
The MODE (Multiple Occupancy Distribution Equipment) range provides a point of distribution, with or without fused incoming isolation, to tariff meters serving multiple occupancy residences, commercial buildings and offices.
The comprehensive yet small range offers contractors and installers shorter lead times than alternatives. Just four unit types, in three ratings, provide the 13 variants that on their own or combinations of which can be used to meet the needs of any distribution requirements in a multiple occupancy building. The range includes 200A 6-single pole 100A ways up to a 500A 60-single pole 100A ways. The 500A version is also available as standard with a dual incoming and outgoing shielded fuseway and up to 30-single poles 100A ways for distribution or incoming shielded fuseway and up to 12-single pole 200A ways and 3-single pole 100A ways for a landlord supply.
Installation time is significantly reduced thanks to staggered outgoing phase banks which increase cabling access and make multiple cable termination easy. Safety has been considered a priority in the MODE design, and operators are protected to IPXXB with the door open. Reliability has been assured through both the one-piece combination busbar design of the MODE units and rigorous temperature rise testing.
To download the MODE selection guide, click here.
