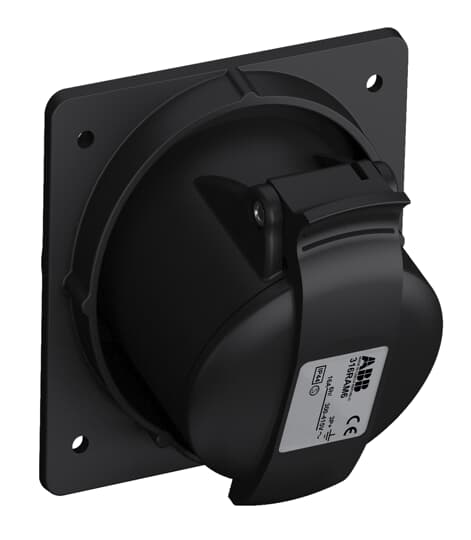

316RAM6B Panel socket black range
ABB

316RAM6B Panel socket black range

Socket outlet- 16A, IP44 splash proof plastic enclosure (PA)
* Cable entry with compression gland.
* Cable area 1 - 2.5mm?
* Type: 3P+E
* Terminals/Poles: 4
* Colour code: Black
* Voltage: 380-415 V
* Part Number: 316-RAM6B

Product identifiers

SKU: 2CMA100544R1000

Categories

Plugs & Sockets For Entertainment Wiring Accessories & Installation Sockets & Switches Plug Sockets

Specifications

Material Plastic
RAL-number 9005
IEC-amperage 16
Rated voltage
Military model no
Number of poles 4
Rated frequency
Contact material -
Connection system Screwed terminal
Flange size vertical 89
Flange size horizontal 83
Surface treatment contacts Untreated
Drill hole distance horizontal 66
Amperage according to UL/CSA (for UL-version) 16
