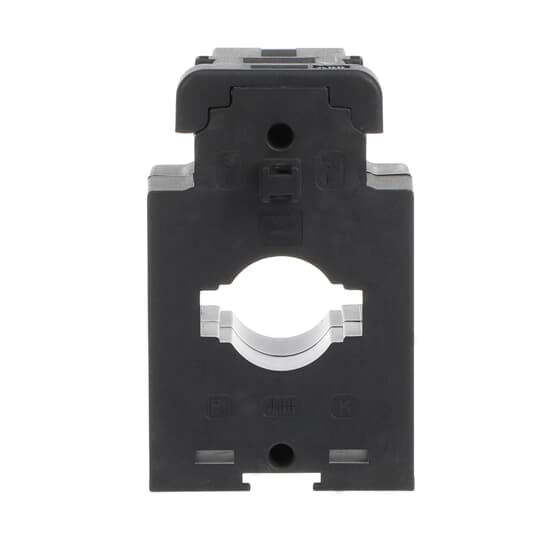

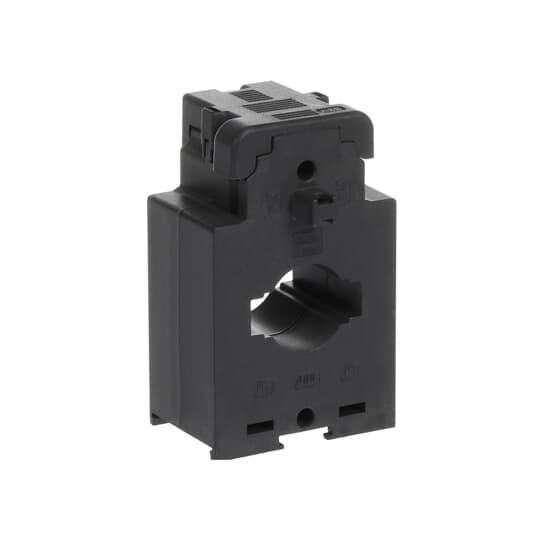

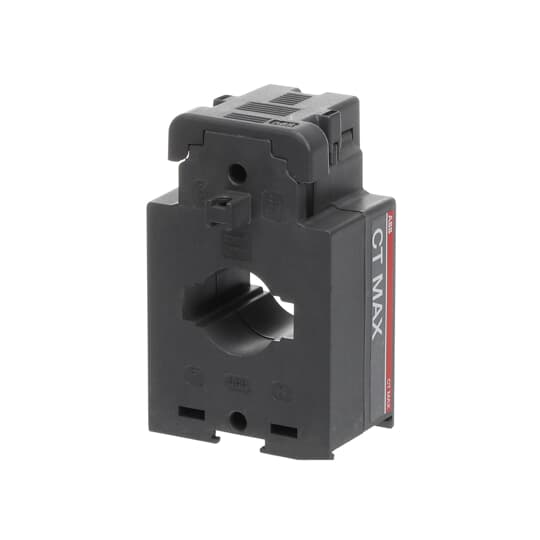

CT MAX 1000
1 / 3
CT MAX 1000
CT MAX ./5 A series, through primary
* Part number: CT MAX 1000
* The CT MAX current transformer range founds its main application in distribution systems with 30x10 mm and 40x10 mm horizontal primary busbars and primary rated current from 300 up to 1000 A. A primary cable up to 30 mm in diameter can also be used. CT MAX transformers are the ideal solution for applications downstream ABB Tmax T5 and T6 circuit-breakers.
* Part number: CT MAX 1000
* The CT MAX current transformer range founds its main application in distribution systems with 30x10 mm and 40x10 mm horizontal primary busbars and primary rated current from 300 up to 1000 A. A primary cable up to 30 mm in diameter can also be used. CT MAX transformers are the ideal solution for applications downstream ABB Tmax T5 and T6 circuit-breakers.
Product identifiers
SKU: 2CSG225995R1101
Specifications
| Model | Through-feed current converter |
| Calibrated | yes |
| Snap mounting | no |
| Width opening | |
| Accuracy class | 0.5 |
| Height opening | |
| Opening diameter | - |
| With copper rail | no |
Documents
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_F_Reach Declaration - ABB S.p.A. Vittuone.pdf
Instructions for use
Product data sheet
Declaration RoHS
ROHS 2CSC445004K2701.pdf
Declaration DOC CE (Declaration of conformity CE)
2CSC445003D2704 - EU DoC - CT PRO XT-CT MAX.pdf
