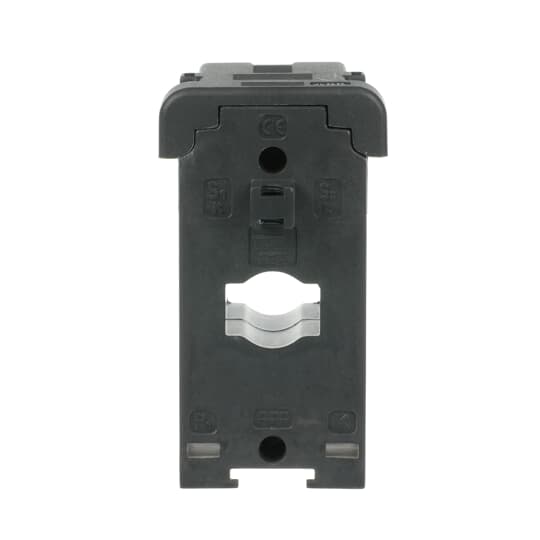

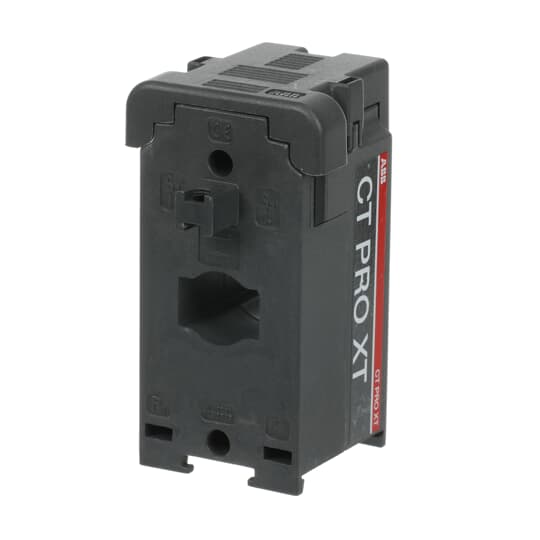

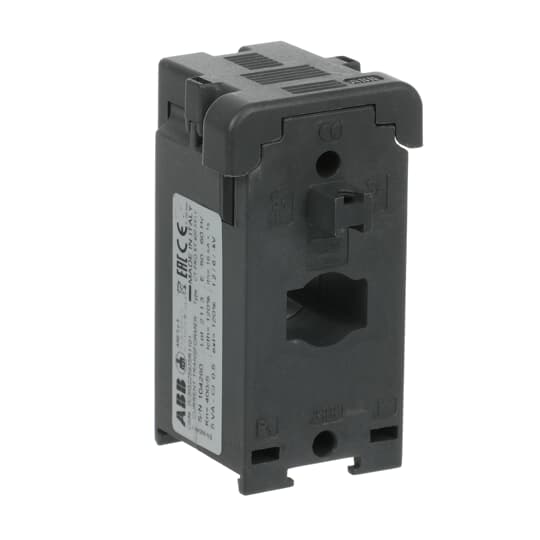

CT PRO XT 400 SELV

CT PRO XT SELV ./5 series, through primary
* Part number: CT PRO XT 400 SELV
* The CT PRO XT current transformers range is designed for distribution systems using cables up to 18 mm in diameter, and primary busbars with
dimensions up to 20 x 10 mm. Order codes are available with primary rated current up to 400 A. CT PRO XT transformers are the ideal solution
for distribution and sub-distribution switchboards downstream ABB modular circuit-breakers (SN201, S 200, S 280, S 800, DS 201, DS 202C,
DS 941) or downstream of Tmax circuit-breakers (XT1, XT2, XT3, XT4 and T4320).
* The integrated electronic protection circuit in the CT PRO XT SELV guarantees protection against risks deriving from no-load operation of the secondary.
* Accessories supplied:
- Sealed terminals cover
- Mounting accessory
- M5 self-threading screw
