Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Type of current	AC
Number of inputs	-
Other bus systems	None
Power consumption	-
Bus system Powernet	no
With LED indication	yes
With bus connection	yes
Max. switching power	2400
With switch function	yes
Bus module detachable	no
Degree of protection (IP)	IP20
Bus system radio frequency	no
Radio frequency bidirectional	no
Switching current (resistive)	-
Local operation/hand operation	no
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	4.0
Max. number of venetian-blind outputs	-
Min. depth of built-in installation box	64.5

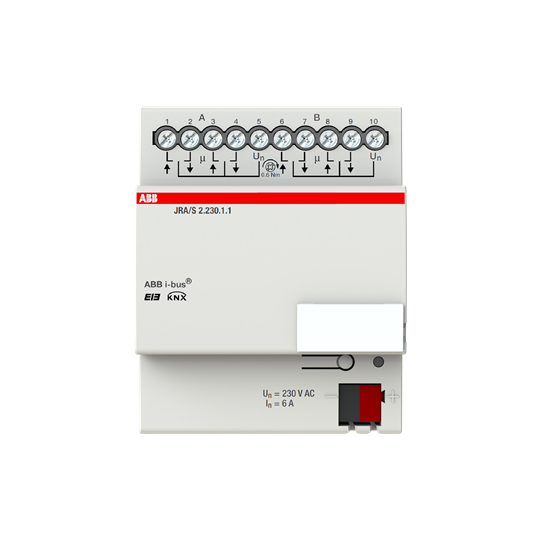

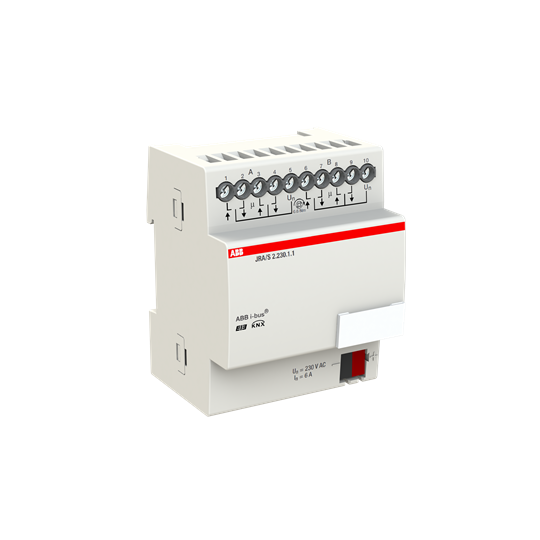

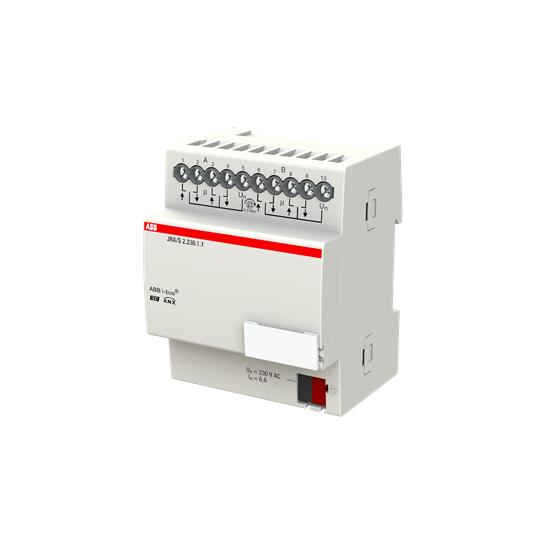

JRA/S2.230.1.1 Blind/RollerShtAct, 2f
