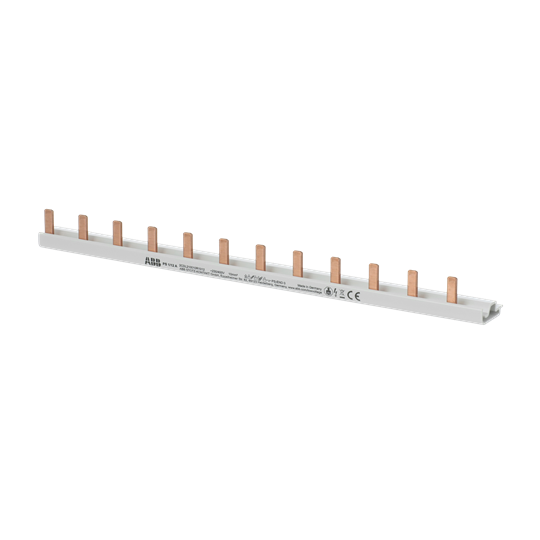

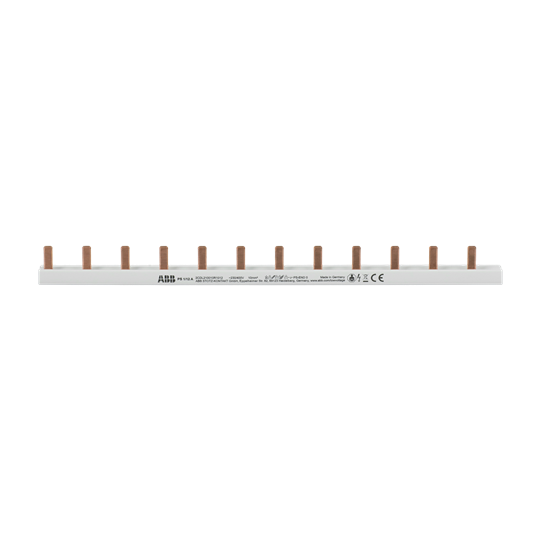

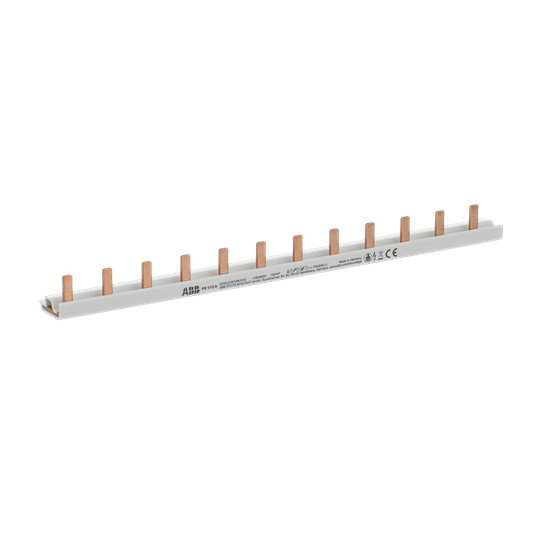

PS1/12 A Busbar

Name: PS1/12 A Busbar
Brand: ABB
SKU: 2CDL210010R1012

Pre-assembled busbars (not to be cut)
1-phase busbars, pin distance 17.6 mm, end caps PS-END 0
* Part number: PS1/12A
* Pre-cutted pins

Product identifiers

SKU: 2CDL210010R1012

Specifications

Colour	Grey
Length	212
Insulated	yes
Module width	17.5
Cross section	10
Number of poles	12
Number of phases	1
Can be cut to size	-
Rated surge voltage	-
Rated permanent current Iu	63
Type of electric connection	Pin
Suitable for number of devices	12
Max. rated operation voltage Ue	690
Width in number of modular spacings	12.0
Suitable for devices with N-conductor	no
Rated short-time withstand current lcw	25
Conditioned rated short-circuit current Iq	-
Suitable for devices with auxiliary switch	no
