Depth	57.5
Width	89.9
Height	91
Stabilized	yes
Power output	100
Built-in width	89.9
Built-in height	91
Modular version	yes
Power consumption	114.4
Short-circuit-proof	yes
Max. output current 1	4.2
Max. output current 2	0
Max. output current 3	0
Wall mounting possible	no
Rated supply voltage DC
Direct mounting possible	no
Degree of protection (IP)	IP20
Output voltage stabilized	yes
SIL according to IEC 61508	None
Suitable for rail mounting	yes
Degree of protection (NEMA)	1
Type of electric connection	Screw connection
1st secondary output voltage
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable	no
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	no
Voltage type (supply voltage)	AC/DC
Nominal value output current 1	4.2
Nominal value output current 2	0
Nominal value output current 3	0
Nominal value output voltage 1	24
Nominal value output voltage 2	0
Nominal value output voltage 3	0
Width in number of modular spacings	5.0
Performance level according to EN ISO 13849-1	None

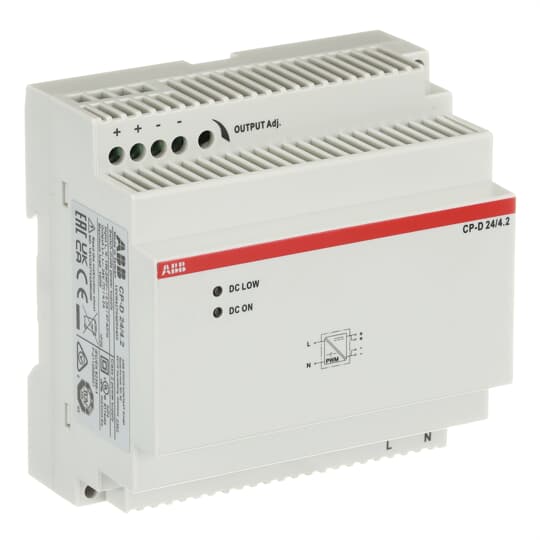

CP-D 24/4.2 Power supply 24v 4.2A
