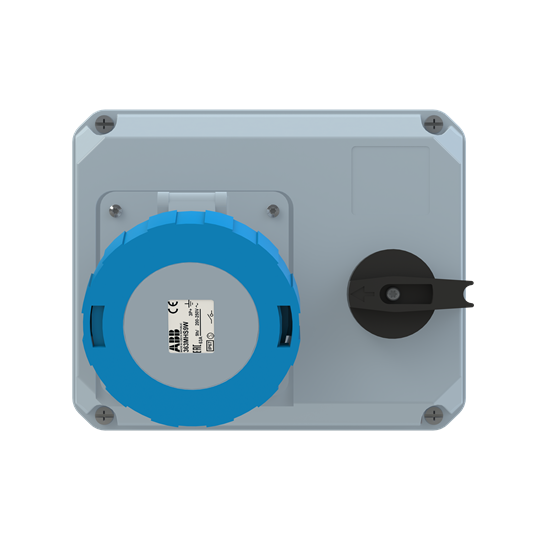

Ind. P&S 363MHS9W
Switched interlocked sockets- 63A, IP67 watertight thermoplastic polyester (PBT)
* Cable entry with knock-outs 2xO 32mm.
* Cable area 6 - 25mm?
* Type: 3P+E
* Terminals/Poles: 4
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 363-MHS9W
* Cable entry with knock-outs 2xO 32mm.
* Cable area 6 - 25mm?
* Type: 3P+E
* Terminals/Poles: 4
* Colour code: Blue
* Voltage: 200-250 V
* Part Number: 363-MHS9W
Product identifiers
SKU: 2CMA167901R1000
Categories
Features
|
Model
|
Surface mounted
|
|
Lockable
|
-
|
|
Material
|
Plastic
|
|
RAL-number
|
7001
|
|
Text field
|
-
|
|
Cable entry
|
-
|
|
IEC-amperage
|
63
|
|
Housing colour
|
-
|
|
Military model
|
no
|
|
Number of poles
|
4
|
|
Contact material
|
-
|
|
Connection system
|
Screwed terminal
|
|
Type of fastening
|
Inner lying mounting
|
|
Insulated mounting
|
yes
|
|
Clock hour position
|
9
|
|
Identification colour
|
Blue
|
|
Degree of protection (IP)
|
IP67
|
|
Surface treatment contacts
|
Untreated
|
|
Voltage according to EN 60309-2
|
230 V (50+60 Hz) blue
|
|
Amperage according to UL/CSA (for UL-version)
|
-
|
