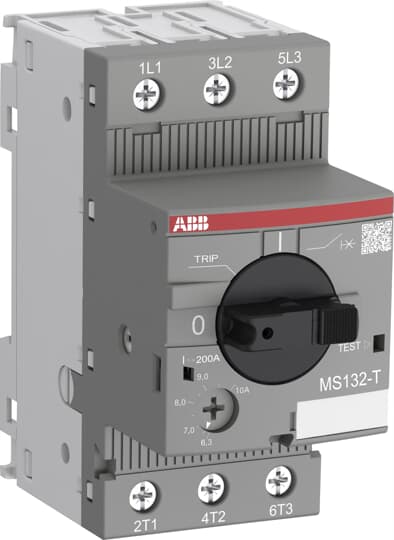

MS132-4.0T Circuit-breaker for primary
MS132-T (Transformer protection) manual motor starter
* Part number: MS132-4.0T
* MS132-T is a 45 mm (width) compact and powerful range for transformer protection up to 12.5 kW (400 V) / 25 A. This type has also a clear and reliable indication of fault in a seperate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The handle is lockable to protect against unauthorized changes. Furthermore it is possible to use the existing MS116/MS132 manual motor starter accessories like auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and power in-feed blocks. Moreover ABB offers special accessories for fast single phase setup.
* Part number: MS132-4.0T
* MS132-T is a 45 mm (width) compact and powerful range for transformer protection up to 12.5 kW (400 V) / 25 A. This type has also a clear and reliable indication of fault in a seperate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The handle is lockable to protect against unauthorized changes. Furthermore it is possible to use the existing MS116/MS132 manual motor starter accessories like auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and power in-feed blocks. Moreover ABB offers special accessories for fast single phase setup.
Product identifiers
SKU: 1SAM340000R1008
Specifications
| Power loss | 4.5 |
| Rated voltage | |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Motor drive optional | no |
| Motor drive integrated | no |
| Type of control element | Turn button |
| Degree of protection (IP) | IP20 |
