ABB

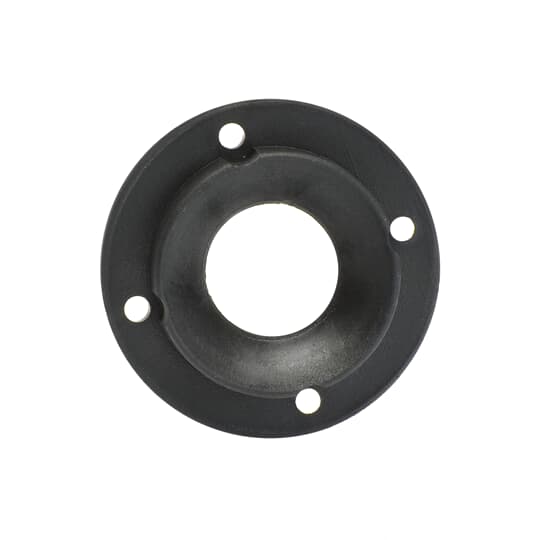

SHAFT GUIDE FOR PISTOL HANDLES

Shaft alignment ring
* Part number: OHZX10
* Improves the handle operation if a handle and a shaft have been poorly aligned.
* The type and the ordering numbers are for one piece.

Product identifiers

SKU: 1SCA022661R3610

Categories

Switch Disconnectors Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

Specifications

Colour -
With key lock -
Padlock locking -
With extension shaft no
With restart blockage -
Degree of protection (NEMA) -
Suitable for emergency stop no
Suitable for switch disconnector yes

Documents

Deeplink product page

Open

Deeplink REACH

Reach AC Switches and Fusegear 2024-10-20 Annex.pdf

Open

Instructions for use

34OHZX10 rev F (1).pdf

Open

Product data sheet

Open

Declaration RoHS

RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE OH_ 2020.10.19 E.pdf

Open
