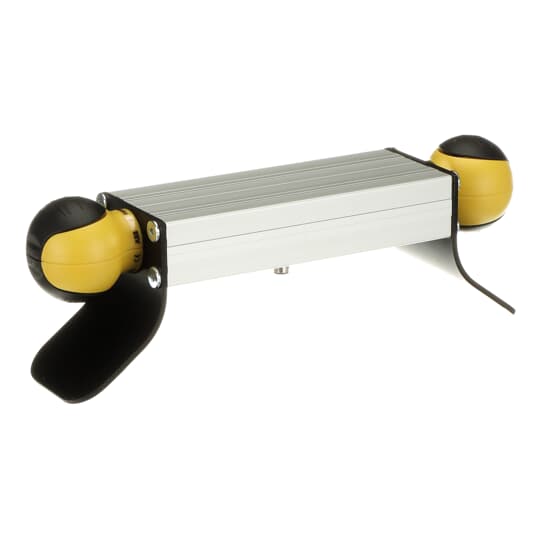

JSTD25H Two hand device M12 8-pol ABB
JSTD25H Two hand device M12 8-pol ABB
JSTD25 Safeball two hand device for mobile installation
* Part number: JSTD25H
* Ergonomic
* Low activation force
* Flexible mounting
* Several grip possibilities
* Highest safety level
* Two channel switching in each hand
* Protection cla IP67
* Not intended for use under water
* Part number: JSTD25H
* Ergonomic
* Low activation force
* Flexible mounting
* Several grip possibilities
* Highest safety level
* Two channel switching in each hand
* Protection cla IP67
* Not intended for use under water
Product identifiers
SKU: 2TLA020007R6300
Specifications
| With foot | no |
| With switch lock | yes |
| Stepped switching | - |
| Version as assembly kit | - |
| Prewiring on terminal rail | yes |
| Scheme for two-hand control | yes |
| Suitable for emergency stop | yes |
| Number of contacts as normally open contact | 0 |
Documents
Deeplink product page
Deeplink REACH
2CMT2022-006480.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
JSTD1-G_AS-i_Manual_(English)_ABB_rev-B-120628a.pdf
Product data sheet
Declaration RoHS
2CMT2022-006499_Safety Products_revB.pdf
Declaration DOC CE (Declaration of conformity CE)
Declaration of conformity-JSTD1_JSTD20_JSTD25-english-2013_2TLC172023D0201_revB.pdf
