Depth	73
Width	150
Height	130
Interlockable	no
Number of poles	4
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Long turning handle
Switching power at 400 V	75
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	160
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	1000
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	75
Rated short-time withstand current lcw	4
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	160
Rated permanent current at AC-23, 400 V	160
Conditioned rated short-circuit current Iq	50
Suitable for distribution board installation	-
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

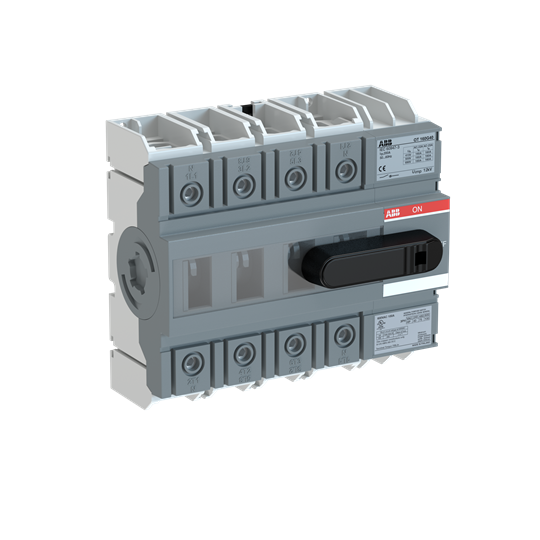

OT160G40K Switch Disconnector
