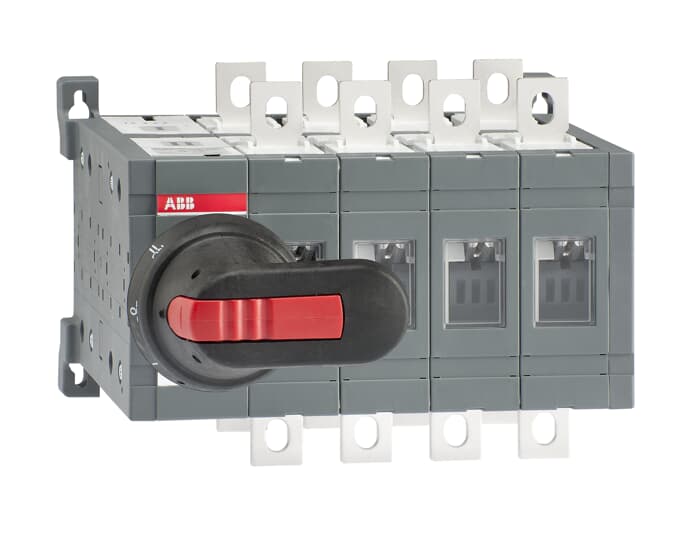

160A 4P Changeover switch fast trans
160A 4P Changeover switch fast trans
Manual Fast Transition OT160...800 change-over switches, 3 & 4 pole, I-O-II -indication
* Part number: OT160E04CFP
* Including a black plastic IP65 I-O-II pistol type handle, shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking. Operating angle 90? to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20ms.
* Part number: OT160E04CFP
* Including a black plastic IP65 I-O-II pistol type handle, shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking. Operating angle 90? to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20ms.
Product identifiers
SKU: 1SCA108489R1001
Specifications
| Depth | 160 |
| Width | 205 |
| Height | 150 |
| Interlockable | yes |
| Number of poles | 4 |
| Number of switches | 1 |
| Device construction | Built-in device plug-in technique |
| Motor drive optional | no |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OT160-2500_C_rev N (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OT160-250_C 2020-09-03 E.pdf
Declaration EPD (Environmental Product Declaration)
1SCC303082D0201_OT250E03C PEP Ecopassport_Rev2.pdf
