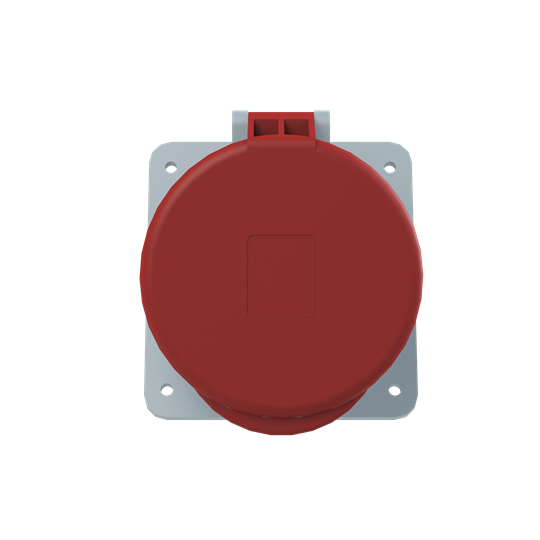

Ind. P&S 463RAU6

Name: Ind. P&S 463RAU6
Brand: ABB
SKU: 2CMA167430R1000

Product identifiers

SKU: 2CMA167430R1000

Specifications

Material	Plastic
RAL-number	7001
IEC-amperage	63
Rated voltage
Military model	no
Number of poles	5
Rated frequency
Contact material	CuZn
Insert direction	Angled
Connection system	Screwed terminal
Clock hour position	6
Flange size vertical	110
Identification colour	Red
Flange size horizontal	110
Degree of protection (IP)	IP44
Surface treatment contacts	Untreated
Drill hole distance vertical	85
Drill hole distance horizontal	85
Voltage according to EN 60309-2	400-440 V (50+60 Hz) red
Amperage according to UL/CSA (for UL-version)	63
