Depth	235
Width	323
Height	185
Interlockable	yes
Number of poles	3
Number of switches	1
Device construction	Built-in device plug-in technique
Motor drive optional	no
Colour control element	Black
Motor drive integrated	yes
Version as main switch	yes
Rated operating voltage
Type of control element	Long turning handle
Switching power at 400 V	160
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	-
With pre-assembled cabling	-
Degree of protection (NEMA)	1
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	1000
Suitable for front mounting 4-hole	yes
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	160
Rated short-time withstand current lcw	15
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	315
Rated permanent current at AC-23, 400 V	315
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

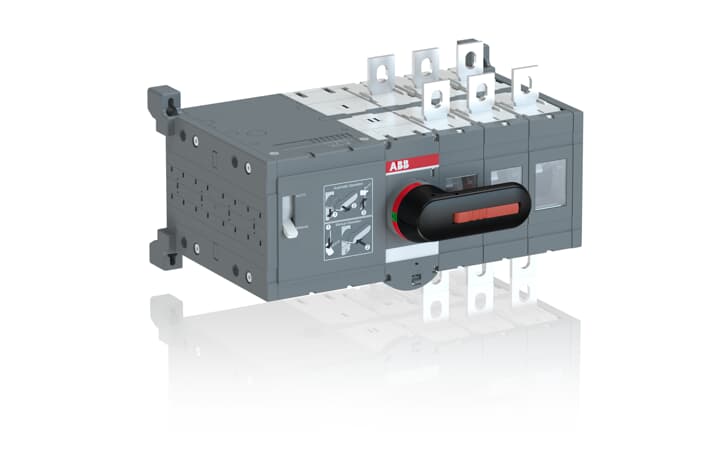

MOTORISED CO SWITCH I-0-II
