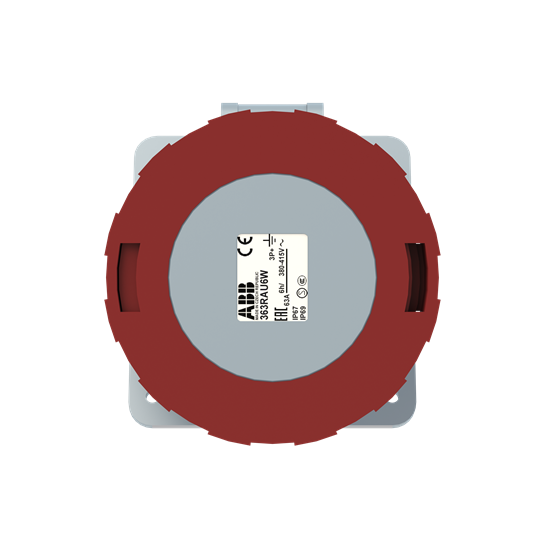

Ind. P&S 363RAU6W
ABB

Ind. P&S 363RAU6W

Panel mounted socket outlets- 63A, IP67 watertight thermoplastic (PA)
* Cable area 6 - 25mm?
* Type: 3P+E
* Terminals/Poles: 4
* Colour code: Red
* Voltage: 380-415 V
* Part Number: 363-RAU6

Product identifiers

SKU: 2CMA167452R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Outdoor Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 63
Rated voltage
Military model no
Number of poles 4
Rated frequency
Contact material -
Connection system Screwed terminal
Flange size vertical 104
Flange size horizontal 100
Surface treatment contacts Untreated
Drill hole distance horizontal 80
Amperage according to UL/CSA (for UL-version) 63

Documents

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
