Ethernet	no
Output power	-
Input voltage
Rated current	-
Bus system KNX	yes
Bus system LON	-
LED controlling	no
Mounting method	Flush-mounted
Type of current	DC
Number of inputs	-
Other bus systems	None
Bus system Powernet	-
Suitable for C-load	no
With LED indication	yes
With bus connection	yes
Max. switching power	100
With switch function	no
Max. switching current	6
Number of switch inputs	-
Rated operating voltage
Number of input channels	-
Degree of protection (IP)	IP20
Number of output channels	-
Remote operation possible	no
Bus system radio frequency	-
Different phases connectable	no
Switching current (resistive)	-
Local operation/hand operation	no
External signal voltage necessary	yes
Max. number of switching contacts	2
Bus system KNX-RF (Radio Frequency)	-
Width in number of modular spacings	-
Max. number of venetian-blind outputs	-

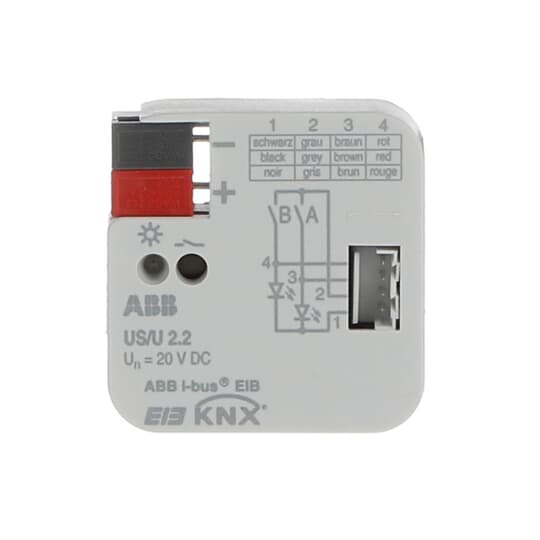

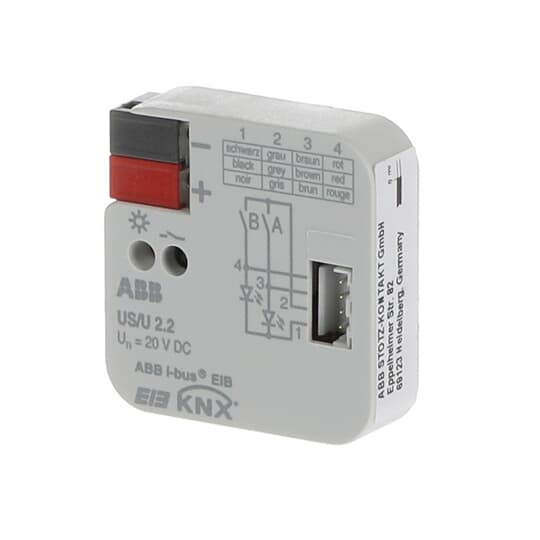

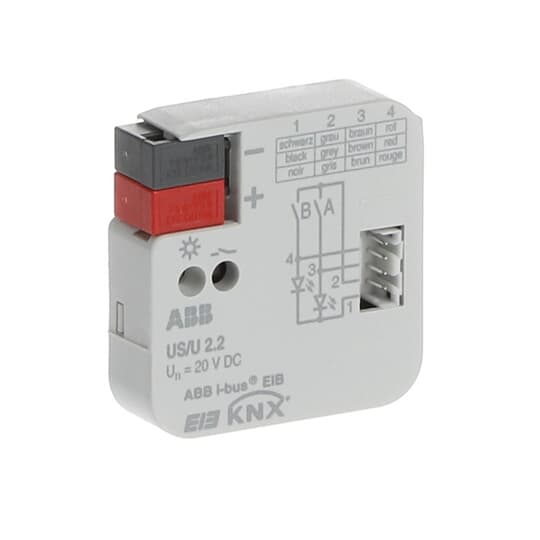

US/U2.2 Universal Interface, 2fold
