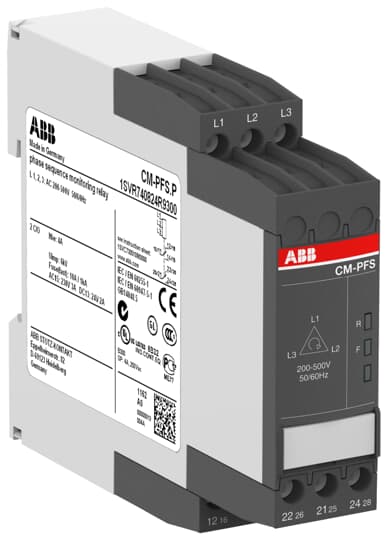

CM-PFS.P Three-phase monitoring relay

Name: CM-PFS.P Three-phase monitoring relay
Brand: ABB
SKU: 1SVR740824R9300

Type CM-PFS three phase monitor
* Easy connect technology
* Double-chamber cage connection terminals
* Sealer transparent cover
* Snap-On housing

Product identifiers

SKU: 1SVR740824R9300

Specifications

Depth	103.7
Width	22.5
Height	85.6
Supply voltage DC
Operating voltage DC
Rated switch current	4
With detachable clamps	no
Phase failure detection	yes
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Phase sequence monitoring	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Phase imbalance monitoring	no
Type of electric connection	Screw connection
Max. permitted off-delay time	-
Voltage type (supply voltage)	AC
External power supply required	no
Min. adjustable off-delay time	-
Function over voltage detection	no
Function under voltage detection	no
Voltage type (operating voltage)	AC
Max. permitted delay-on energization time	-
Number of contacts as change-over contact	-
Min. adjustable delay-on energization time	-
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-
