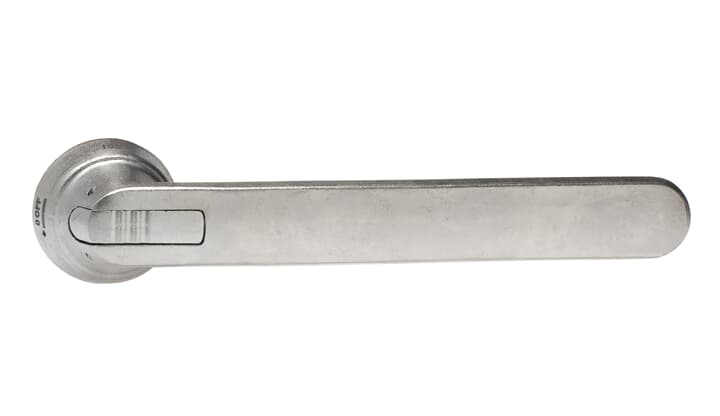

STAINLESS STEEL PISTOL
STAINLESS STEEL PISTOL
Operating handles - Stainless steel handles for base mounted switches
* Part number: OHM275L12
* For shaft diameter 12 mm
* Stainless steel handles, indication I-O/ON-OFF, padlockable with 3 padlocks in the OFF-position, door interlock in the ON-position, IP66 (NEMA 4X).
* Door interlocking in ON-position means that the door can not be opened, when the handle is in ON-position. This can be defeated in IP65 types to allow authorized personnel access for inspection.
* Part number: OHM275L12
* For shaft diameter 12 mm
* Stainless steel handles, indication I-O/ON-OFF, padlockable with 3 padlocks in the OFF-position, door interlock in the ON-position, IP66 (NEMA 4X).
* Door interlocking in ON-position means that the door can not be opened, when the handle is in ON-position. This can be defeated in IP65 types to allow authorized personnel access for inspection.
Product identifiers
SKU: 1SCA022832R4840
Specifications
| Colour | - |
| With key lock | - |
| Padlock locking | - |
| With extension shaft | no |
| With restart blockage | - |
| Degree of protection (NEMA) | - |
| Suitable for emergency stop | no |
| Suitable for switch disconnector | yes |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OHM45-275 rev G.pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OH_ 2020.10.19 E.pdf
