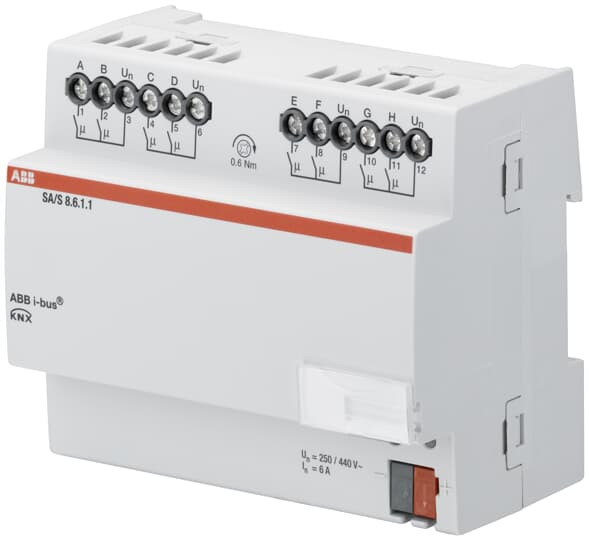

SA/S8.6.1.1 Switch Actuator, 8F, 6A MDRC

Name: SA/S8.6.1.1 Switch Actuator, 8F, 6A MDRC
Brand: ABB
SKU: 2CDG110153R0011

Product identifiers

SKU: 2CDG110153R0011

Specifications

Output power	1380
Rated current	6
Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Other bus systems	None
Power consumption	-
Bus system Powernet	no
Suitable for C-load	-
With LED indication	-
With bus connection	yes
Max. switching power	1200
Bus module detachable	no
Modular expandability	-
Max. switching current	6
Rated operating voltage
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	no
Different phases connectable	-
Radio frequency bidirectional	no
Local operation/hand operation	no
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	6.0
Min. depth of built-in installation box	-

Deeplink product page
Product data sheet
