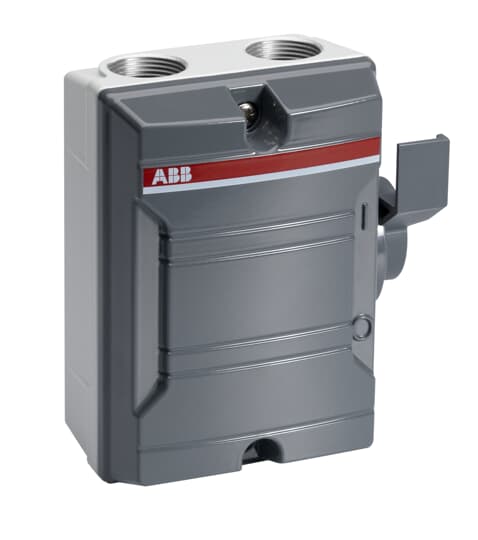

KSE 325 TPN 25A 3P Al Enc IP65 Switch

Name: KSE 325 TPN 25A 3P Al Enc IP65 Switch
Brand: ABB
SKU: 2CMA142412R1000

Product identifiers

SKU: 2CMA142412R1000

Specifications

Depth	60
Width	111
Height	130
Interlockable	yes
Number of poles	3
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	Grey
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Rocker lever
Switching power at 400 V	7.5
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	25
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	690
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP65
Rated operation power at AC-23, 400 V	7.5
Rated short-time withstand current lcw	-
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	-
Rated permanent current at AC-23, 400 V	16
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	-
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
