Power loss	5.52
Rated voltage
Number of poles	3
Device construction	Built-in device fixed built-in technique
Motor drive optional	yes
Motor drive integrated	no
Type of control element	Toggle
Degree of protection (IP)	IP20
Rated permanent current Iu	80
With switched-off indicator	no
Overload release current setting
Integrated earth fault protection	no
Complete device with protection unit	yes
With integrated under voltage release	no
DIN rail (top hat rail) mounting optional	no
Suitable for DIN rail (top hat rail) mounting	no
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Front side
Adjustment range undelayed short-circuit release
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	-

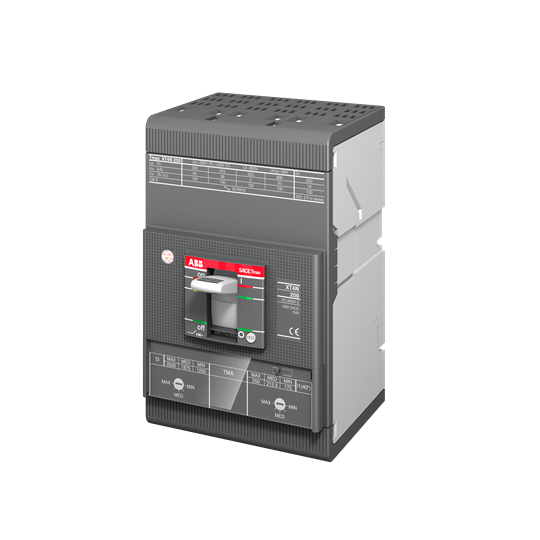

XT4S 160 MA 80 Im=400...800 3p F F
