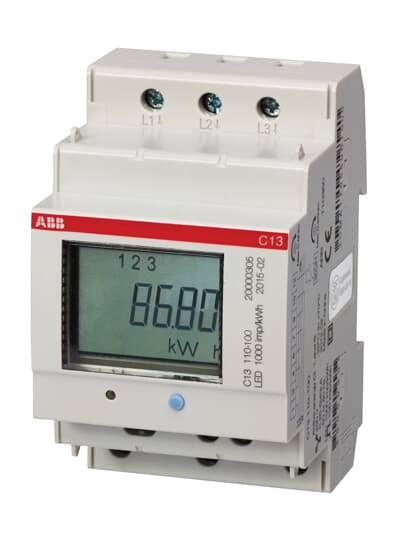

C13 110-100 40A TP METER DIRECT PULSE

Name: C13 110-100 40A TP METER DIRECT PULSE
Brand: ABB
SKU: 2CMA100191R1000

40 A direct connected, 3 DIN - Steel Active energy, pulse output
* Part number: C13 110 - 100
* The EQ meters, C series are truly compact meters for single phase and three phase metering. The C series is mounted on a DIN rail and is suitable for installation in distribution boards and small consumer units.

Product identifiers

SKU: 2CMA100191R1000

Specifications

Depth	65
Model	-
Width	54
Height	26.5
Approval	Measuring Instruments Directive
Frequency
Pole type	Four conductor
Calibrated	yes
Pulse rate
Pulse type	S0
Energy type	-
Tariff type	One-tariff
Pulse output	Electrical
Suitable for	-
Type of meter	Electronic
Accuracy class	B
Tariff control	-
With lock code	no
EEC40 signature	no
Mounting method	DRA (DIN-rail adapter)
Power consumption	0.720
Type of interface	None
Type of indication	Digital
Max. current (Imax)	40
Escapement mechanism	yes
Nominal current (In)	40
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP20
Degree of protection (NEMA)	-
Measurement type load profile	no
Number of positions total (counter)	7
Width in number of modular spacings	3
