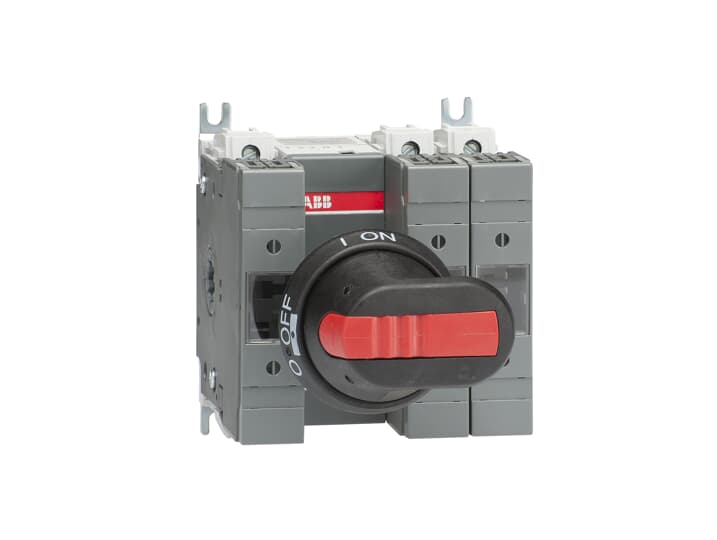

63A 3P Switch Fuse, mech in btwn poles
63A 3P Switch Fuse, mech in btwn poles
OS20...160 BS Front Operated Switch Fuses - Mechanism between the poles - protected tunnel terminals, IP20
* Part number: OS63GB12P
* Including terminal bolt kit (OS100...160), a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths.
* Part number: OS63GB12P
* Including terminal bolt kit (OS100...160), a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths.
Product identifiers
SKU: 1SCA115325R1001
Specifications
| Cable entry | Other |
| Number of poles | 3 |
| Suitable for fuses | Shape A2/A3 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OS32G-63G rev Q.pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OS32-63G_ 2020-09-14 D.pdf
Declaration EPD (Environmental Product Declaration)
1SCC311195D0201_OS32-63_PEP Ecopassport_APPROVED.pdf
