MOD PANEL STEEL 14MOD DIN 185X400
MOD PANEL STEEL 14MOD DIN 185X400
IP66 Stainless Steel Enclosures - Screwed modular panels
* Part number: PM1414X

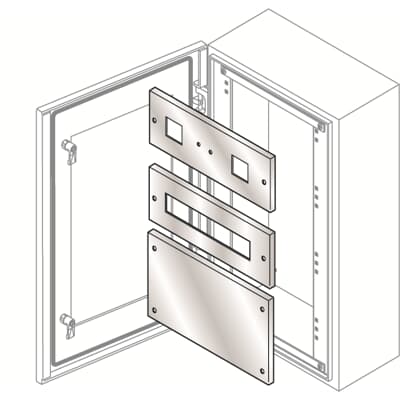

* 12/10 mm thick AISI 304 stainless steel modular panels. The screwed modular panels can be fitted on the enclosures using the special kit (KD...) consisting of functional uprights and a compensation panel. Each modular panel (PM) comes equipped with a DIN rail (depth-adjustable), fixing brackets and the relative small parts.
* Tmax modular and moulded-case circuit breakers up to T3 can be positioned side by side on the same DIN rail using the special depth adapter AP6001.
* To install MCCBs, fix the DIN rail in the recessed position.
* The DIN rail fixing brackets allow mounting of the wiring duct up to a maximum size of 60 x 60 mm.
* Part number: PM1414X
* 12/10 mm thick AISI 304 stainless steel modular panels. The screwed modular panels can be fitted on the enclosures using the special kit (KD...) consisting of functional uprights and a compensation panel. Each modular panel (PM) comes equipped with a DIN rail (depth-adjustable), fixing brackets and the relative small parts.
* Tmax modular and moulded-case circuit breakers up to T3 can be positioned side by side on the same DIN rail using the special depth adapter AP6001.
* To install MCCBs, fix the DIN rail in the recessed position.
* The DIN rail fixing brackets allow mounting of the wiring duct up to a maximum size of 60 x 60 mm.
Product identifiers
SKU: PM1414X
Specifications
| Depth | - |
| Width | - |
| Colour | - |
| Height | - |
| Hinging | - |
| Material | - |
| Transparent | - |
| Quick locking | - |
Documents
Deeplink product page
Deeplink REACH
ReachDeclaration_Enclosures_290424.pdf
Instructions for use
Manuale SR2.pdf
Product data sheet
Declaration RoHS
9AKK108468A2383_en_B_EU Declaration of Conformity SRX Enclosures.pdf
Declaration EPD (Environmental Product Declaration)
ABBG-00672-V01.01-EN_ EPD Metal Enclosures SR2 SRX.pdf
