S2C-H6R COMPACT C/O AUXILLIARY
1 / 3

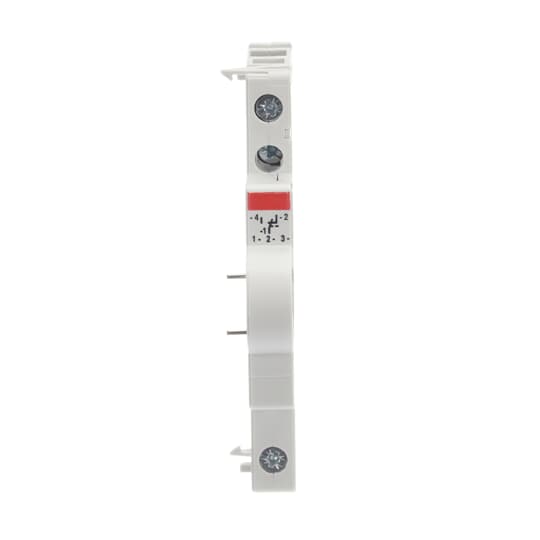

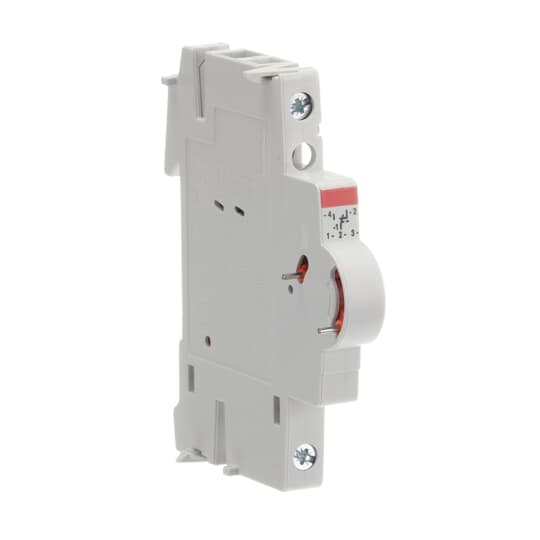

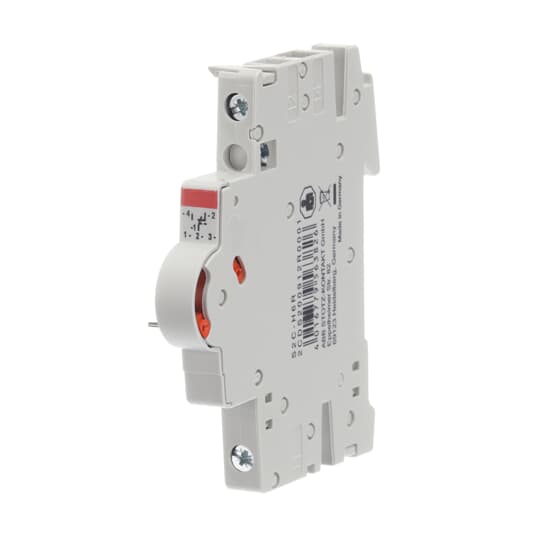

S2C-H6R COMPACT C/O AUXILLIARY
Auxiliary contact
* Part number: S2C-H6R
* Function S2C-S/H6R: choice through a selector between indication of the position of the device's contact and signalling of the fault (overcurrent/short-circuit for MCBs and RCBOs; earth fault for RCCBs and RCBOs). Suitable for MCBs S 200 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 and SD 200 switch disconnectors series.
* Function S2C-H6R: indication of the position of the device's contact. Suitable for MCBs S200 series. To be mounted on the left side of the MCBs
thanks to the special pin. Suitable for SD 200 switch disconnectors series. They are not suitable to be mounted together with RCD-block DDA200.
* Function S2C-H6-xxR: indication of the position of the MCB contact. Mounted on the right side. Suitable for SD 200 switch disconnectors series. They are not suitable to be mounted together with other right side mounted auxiliary contact.
* Part number: S2C-H6R
* Function S2C-S/H6R: choice through a selector between indication of the position of the device's contact and signalling of the fault (overcurrent/short-circuit for MCBs and RCBOs; earth fault for RCCBs and RCBOs). Suitable for MCBs S 200 series, RCCBs F 200 series, RCBOs DS201, DS202C, DS 200 and SD 200 switch disconnectors series.
* Function S2C-H6R: indication of the position of the device's contact. Suitable for MCBs S200 series. To be mounted on the left side of the MCBs
thanks to the special pin. Suitable for SD 200 switch disconnectors series. They are not suitable to be mounted together with RCD-block DDA200.
* Function S2C-H6-xxR: indication of the position of the MCB contact. Mounted on the right side. Suitable for SD 200 switch disconnectors series. They are not suitable to be mounted together with other right side mounted auxiliary contact.
Product identifiers
SKU: 2CDS200912R0001
Specifications
| Function | Auxiliary switch |
| Voltage type | - |
| Rated voltage | - |
| Device fitting | Miniature circuit breaker (MCB) |
| Rated switch current | - |
| Number of fault-signal switches | 0 |
| Width in number of modular spacings | - |
| Number of contacts as change-over contact | 1 |
