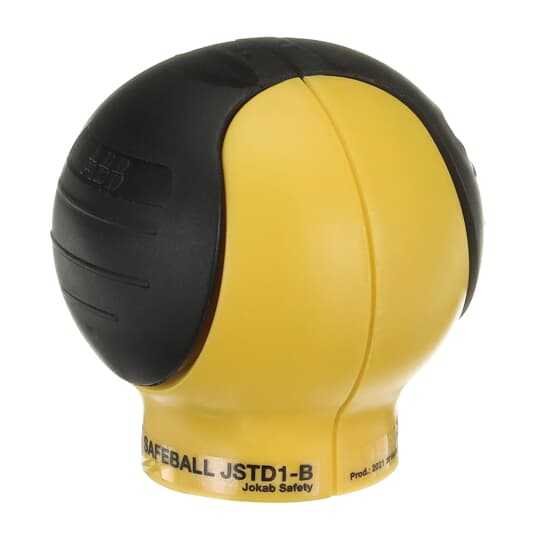

JSTD1-B Safeball cable 2dm Type ABB

Name: JSTD1-B Safeball cable 2dm Type ABB
Brand: ABB
SKU: 2TLA020007R3100

JSTD1 Safeball one hand device
* Ergonomic
* Low activation force
* Flexible mounting
* Several grip possibilities
* Highest safety level
* Two channel switching in each hand
* Protection cla IP67
* Not intended for use under water

Product identifiers

SKU: 2TLA020007R3100

Specifications

Forced opening	no
With status indication	no
Degree of protection (IP)	IP67
Type of switching contact	Other
Degree of protection (NEMA)	1
Type of electric connection	Other
Number of extra push buttons	0
Suitable for safety functions	yes
Cross-wire monitoring possible	yes
Rated operation current Ie at AC12, 24 V	-
Number of contacts as change-over contact	0
Rated operation current Ie at AC12, 125 V	-
Rated operation current Ie at AC12, 220 V	-
Rated operation current Ie at DC-12, 24 V	0.02
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
Performance level according to EN ISO 13849-1	Level e
