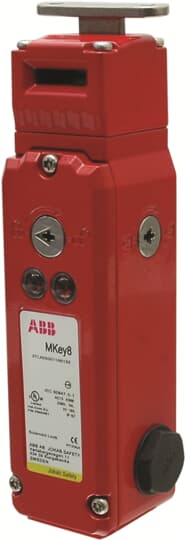

MKey8, Sol M20, 24V, Std. Key

Name: MKey8, Sol M20, 24V, Std. Key
Brand: ABB
SKU: 2TLA050011R0132

MKey8 interlock safety switch - standard
* Part number: 2TLA050011R0132
* Robust design
* 8 actuating positions
* High holding force
* Up to PL e/Cat.4
* Painted metal
* IP67 rating
* LED status indication

Product identifiers

SKU: 2TLA050011R0132

Specifications

Width sensor	46
Coating housing	Powder coating
Height of sensor	176
Housing material	Metal
Length of sensor	47
Type of interface	Other
Guard locking force	3000
With escape release	no
Type of guard locking	-
With auxiliary release	yes
With status indication	yes
Construction type housing	Special construction
Degree of protection (IP)	IP67
Type of switching contact	Other
Degree of protection (NEMA)	1
Type of electric connection	Other
Suitable for safety functions	yes
Explosion safety category for gas	-
Explosion safety category for dust	-
Number of safety auxiliary contacts	-
Ambient temperature during operating
Number of contacts as change-over contact	-
Rated operation current Ie at AC-15, 24 V	3
Rated operation current Ie at DC-13, 24 V	0.2
Rated operation current Ie at AC-15, 125 V	3
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at DC-13, 230 V	-
Type of interface for safety communication	Other
Number of contacts as normally open contact	4
Rated control supply voltage magnet drive DC
Number of contacts as normally closed contact	2
Rated control supply voltage magnet drive AC 50 Hz
Rated control supply voltage magnet drive AC 60 Hz
