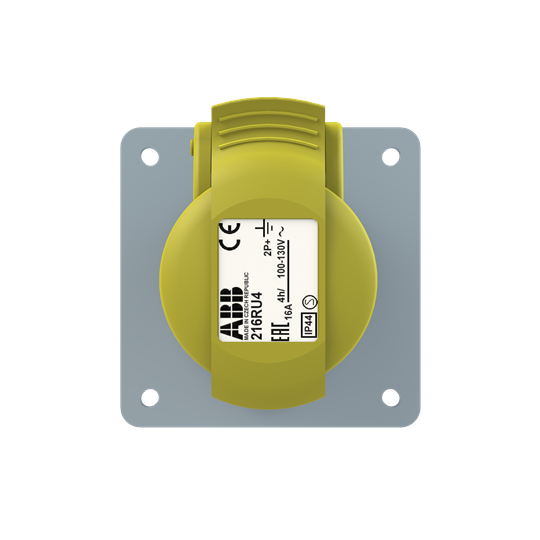

2P+E Panel Out, 16A, 110V, yell 4h, IP44
ABB

2P+E Panel Out, 16A, 110V, yell 4h, IP44

Panel mounted socket outlets- 16A, IP44 splash proof thermoplastic (PA)
* Cable area 1.5 - 4mm?
* Type: 2P+E
* Terminals/Poles: 3
* Colour code: Yellow
* Voltage: 100-130 V
* Part Number: 216-RU4

Product identifiers

SKU: 2CMA193169R1000

Categories

Panel Mounted Socket Outlets Wiring Accessories & Installation Sockets & Switches Outdoor Sockets

Specifications

Material Plastic
RAL-number 7001
IEC-amperage 16
Rated voltage
Military model no
Number of poles 3
Rated frequency
Contact material CuZn
Connection system Screwed terminal
Flange size vertical 75
Flange size horizontal 75
Surface treatment contacts Untreated
Drill hole distance horizontal 61
Amperage according to UL/CSA (for UL-version) 16
