Depth	65
Width	35
Height	85.000
Function	For AC-current system
Supply voltage DC
Operating voltage DC
Rated switch current	-
With detachable clamps	no
Current measuring range
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Rated operating frequency
Response value amperage 1
Response value amperage 2
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Error registration possible	no
Type of electric connection	-
Voltage type (supply voltage)	-
External power supply required	-
Indication of difference current	no
Voltage type (operating voltage)	-
Max. permitted delay-on energization time	5
Number of contacts as change-over contact	-
Min. adjustable delay-on energization time	0.3
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-

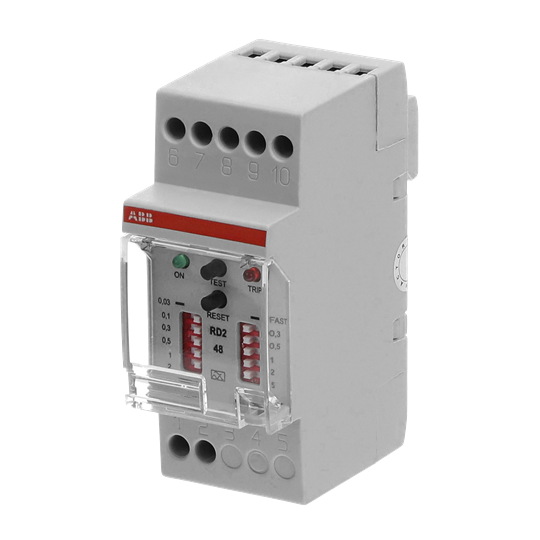

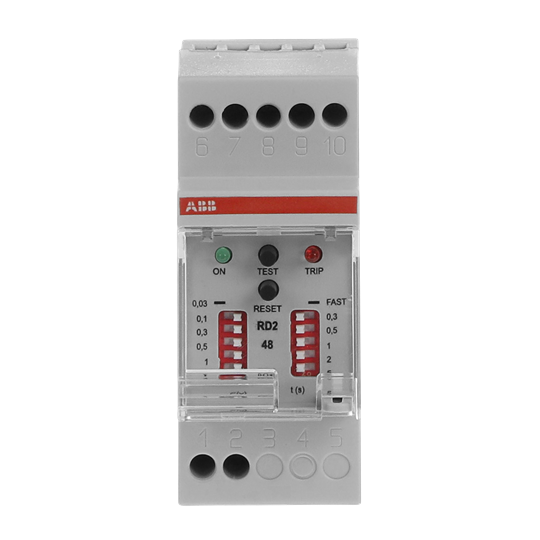

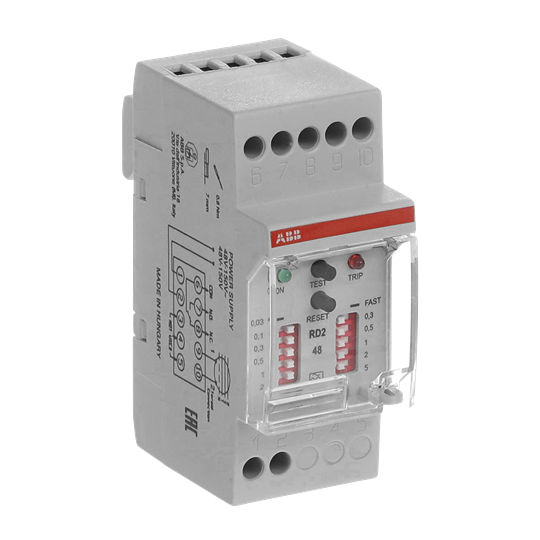

RD2-48 RESIDUAL RELAY 48-150V
