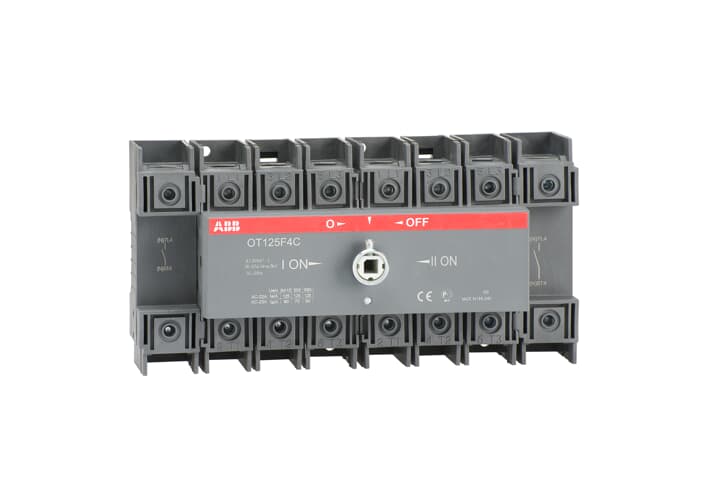

125A 4P CHANGE OVER SWITCH

Name: 125A 4P CHANGE OVER SWITCH
Brand: ABB
SKU: 1SCA105054R1001

Manual OT16...315 change-over switches, 3 & 4 pole, I-O-II -indication
* Part number: OT125F4C
* Includes terminal clamps IP20. Handle and shaft has to be ordered separately.

Product identifiers

SKU: 1SCA105054R1001

Specifications

Depth	86
Width	193
Height	100
Interlockable	yes
Number of poles	4
Number of switches	1
Device construction	Built-in device plug-in technique
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Other
Switching power at 400 V	45
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	-
With pre-assembled cabling	-
Degree of protection (NEMA)	1
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	750
Suitable for front mounting 4-hole	yes
Suitable for front mounting centre	no
Suitable for intermediate mounting	no
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	45
Rated short-time withstand current lcw	2.5
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	125
Rated permanent current at AC-23, 400 V	90
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
