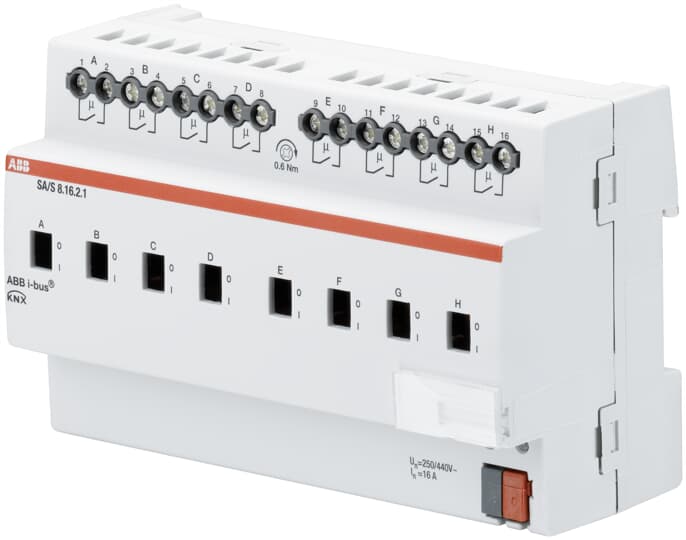

SA/S8.16.2.1 Switch Actuator, 8fold, 16A

Name: SA/S8.16.2.1 Switch Actuator, 8fold, 16A
Brand: ABB
SKU: 2CDG110161R0011

Product identifiers

SKU: 2CDG110161R0011

Specifications

Output power	2500
Rated current	16
Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Other bus systems	None
Power consumption	-
Bus system Powernet	no
Suitable for C-load	-
With LED indication	yes
With bus connection	yes
Max. switching power	2500
Bus module detachable	no
Modular expandability	-
Max. switching current	16
Rated operating voltage
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	no
Different phases connectable	-
Radio frequency bidirectional	-
Local operation/hand operation	-
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	8.0
Min. depth of built-in installation box	-
