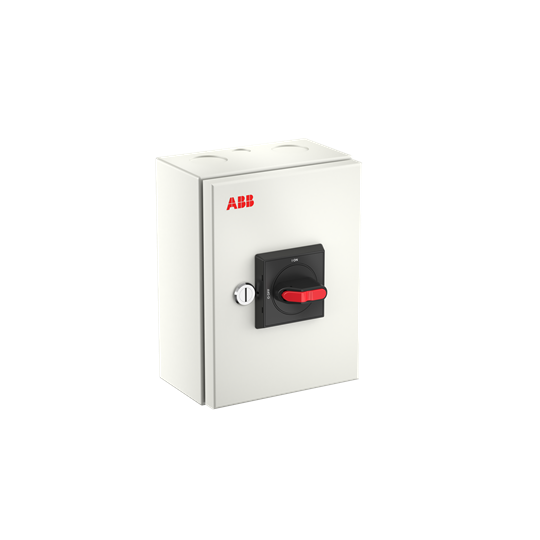

63A 3P Steel Enc Switch Disc Mtrc thrd

Name: 63A 3P Steel Enc Switch Disc Mtrc thrd
Brand: ABB
SKU: OTL45B3M

Product identifiers

SKU: OTL45B3M

Specifications

Depth	100
Width	150
Height	200
Interlockable	yes
Number of poles	3
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	Black
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Turn button
Switching power at 400 V	22
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	63
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	750
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP65
Rated operation power at AC-23, 400 V	22
Rated short-time withstand current lcw	1
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	63
Rated permanent current at AC-23, 400 V	45
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	-
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
