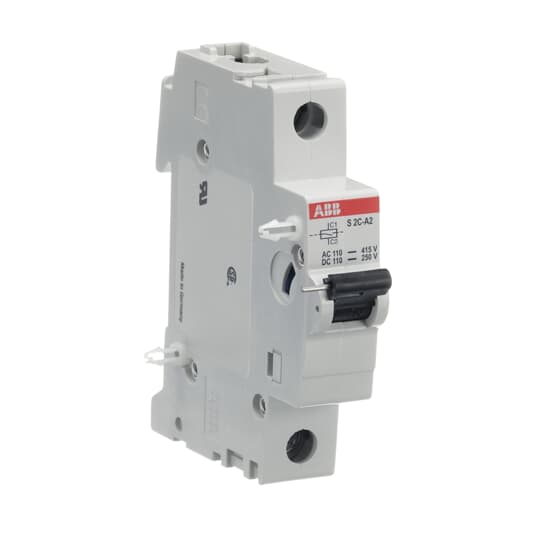

S2C-A2 COMPACT SHUNT TRIP 110-415V – Image 2 of 3

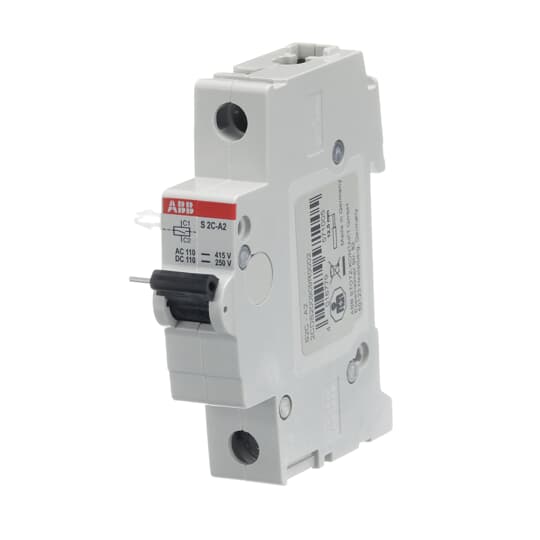

S2C-A2 COMPACT SHUNT TRIP 110-415V – Image 3 of 3

1 / 3

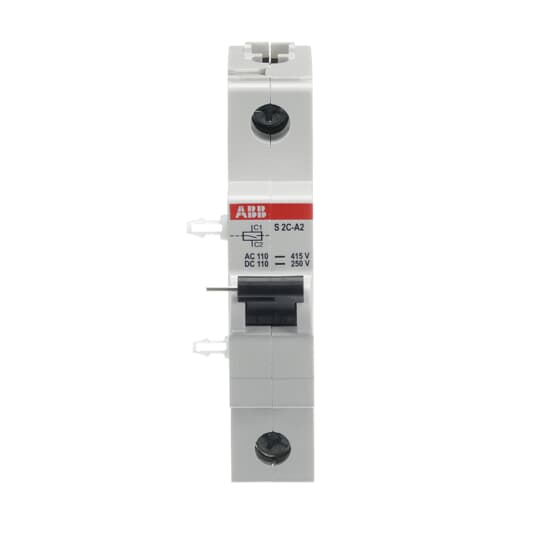

S2C-A2 COMPACT SHUNT TRIP 110-415V

Name: S2C-A2 COMPACT SHUNT TRIP 110-415V
Brand: ABB
SKU: 2CDS200909R0002

Shunt trips
* Part number: S2C-A2
* Function: remote opening of the device when a voltage is applied. Suitable for MCBs S 200 series, RCBOs DS 200 series, SD 200 switch disconnectors series.

Product identifiers

SKU: 2CDS200909R0002

Specifications

Function	Shunt release (for power circuit breaker)
Voltage type	-
Rated voltage	-
Device fitting	Miniature circuit breaker (MCB)
Rated switch current	-
Number of fault-signal switches	0
Width in number of modular spacings	-
Number of contacts as change-over contact	-
With auto test for earth leakage function	-
Number of contacts as normally open contact	-
Suitable for max. current main contact unit	-
Number of contacts as normally closed contact	-
Suitable for max. number of poles main contact unit (total)	-
