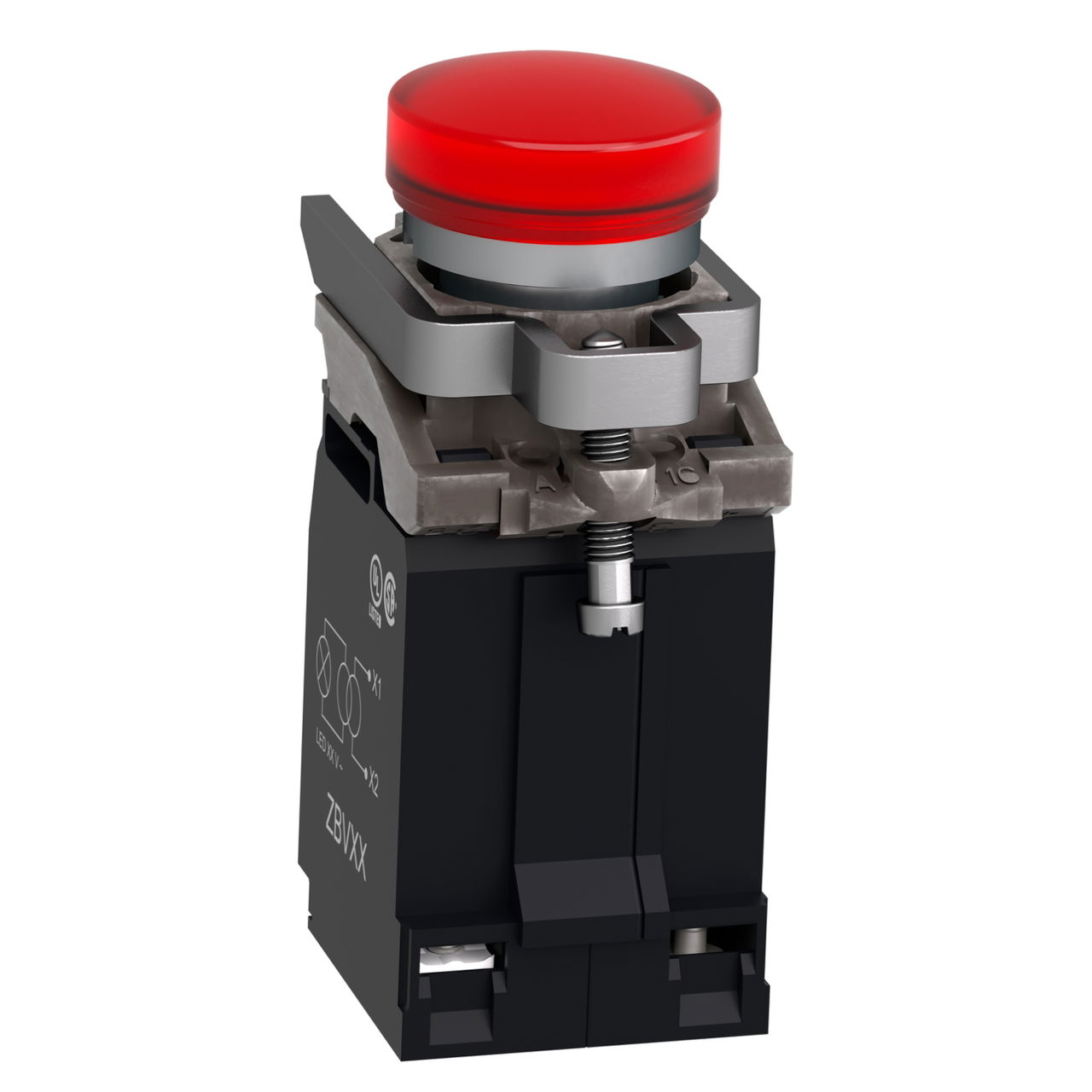

120VTranPilotlite Red BA9 inc
1 / 7
120VTranPilotlite Red BA9 inc
range of product: Harmony XB4
product or component type: complete pilot light
device short name: XB4
bezel material: chromium plated metal
fixing collar material: zamak
mounting diameter: 22 mm
sale per indivisible quantity: 1
shape of signaling unit head: round
cap/operator or lens colour: red
operator additional information: with plain lens
light source: incandescent
bulb base: BA 9s
light block supply: via integral transformer, 1.2 VA - 6 V
[Us] rated supply voltage: 110...120 V AC, 50/60 Hz
Product identifiers
SKU: XB4BV34
EAN: 3389110887235
GTIN: 3389110887235
