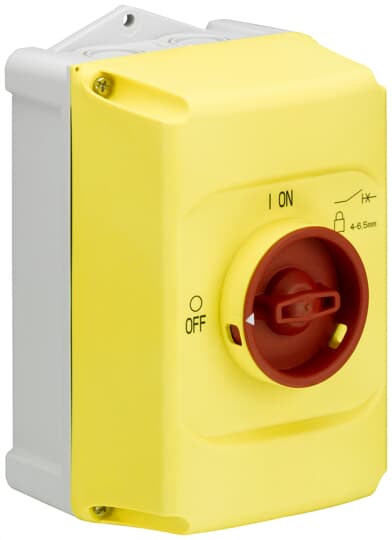

IB132-Y Enclosure, RD/YE, IP65,
IB132-Y Enclosure, RD/YE, IP65,
Manual motor starters main accessories - IP65 enclosures
* Part number: IB132-Y
* IB132 are IP65 enclosures for single MMS installation. Additional mounting of auxiliary and signaling contacts, shunt trips and undervoltage release is possible. The handle is lockable in OFF position. For detailed specification see installation instruction.
* Part number: IB132-Y
* IB132 are IP65 enclosures for single MMS installation. Additional mounting of auxiliary and signaling contacts, shunt trips and undervoltage release is possible. The handle is lockable in OFF position. For detailed specification see installation instruction.
Product identifiers
SKU: 1SAM201911R1011
Specifications
| Depth | 119 |
| Model | Surface mounting |
| Width | 118 |
| Height | 194 |
| Housing material | Plastic |
| With transparent cover | no |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 12 |
Documents
Deeplink product page
Deeplink REACH
1SAA963005-4502.pdf
Dimensioned drawing
2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf
Instructions for use
2CDC131028M6805d_IB132.pdf
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
1SAD101100-3411_Rev_D.pdf
