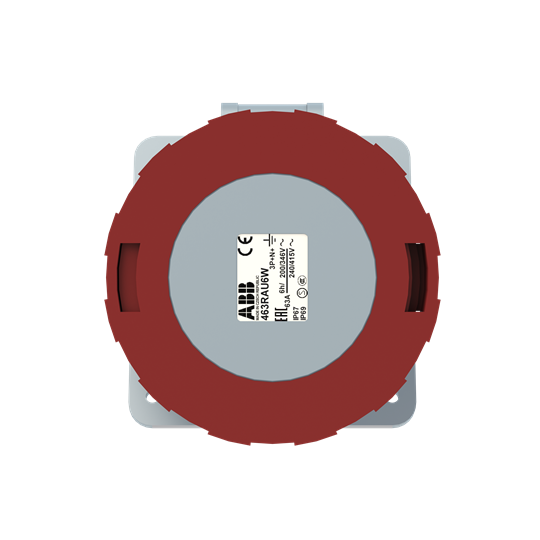

Ind. P&S#463RAU6W

Name: Ind. P&S#463RAU6W
Brand: ABB
SKU: 2CMA167464R1000

Product identifiers

SKU: 2CMA167464R1000

Specifications

Material	Plastic
RAL-number	7001
IEC-amperage	63
Rated voltage
Military model	no
Number of poles	5
Rated frequency
Contact material	-
Insert direction	Angled
Connection system	Screwed terminal
Clock hour position	6
Flange size vertical	104
Identification colour	Red
Flange size horizontal	100
Degree of protection (IP)	IP67
Surface treatment contacts	Untreated
Drill hole distance vertical	84
Drill hole distance horizontal	80
Voltage according to EN 60309-2	400-440 V (50+60 Hz) red
Amperage according to UL/CSA (for UL-version)	63
