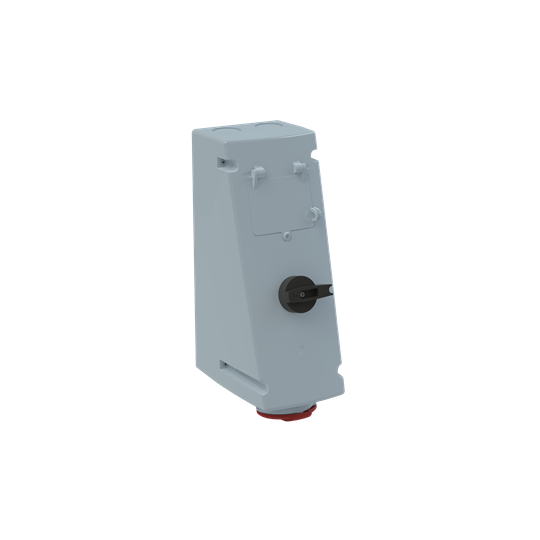

Ind. P&S 416MPR6
Switched interlocked socket outlets with protection- 16A, IP44 splash proof thermoplastic polyester (PBT)
* Contains RCD 25A/0.03A, type A. Cable entry with knock-outs 2xO 25mm.
* Cable area 1.5 - 4mm?
* Type: 3P+N+E
* Terminals/Poles: 4
* Colour code: Red
* Voltage: 346-415 V
* Part Number: 416-MPR6
* Contains RCD 25A/0.03A, type A. Cable entry with knock-outs 2xO 25mm.
* Cable area 1.5 - 4mm?
* Type: 3P+N+E
* Terminals/Poles: 4
* Colour code: Red
* Voltage: 346-415 V
* Part Number: 416-MPR6
Product identifiers
SKU: 2CMA167772R1000
Specifications
| Model | Base unit and cover |
| Switch | Mechanical locking |
| Protection | - |
| IEC-amperage | 16 |
| Military model | - |
| Type of switch | None |
| Number of poles | 5 |
| Contact material | - |
