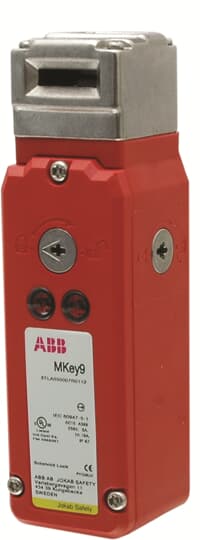

MKey9,Sol M20,24V,Std.Key

Name: MKey9,Sol M20,24V,Std.Key
Brand: ABB
SKU: 2TLA050007R0112

MKey9 interlock safety switch
* Part number: MKey9 - 24VDC
* Compact and robust
* 8 actuating positions
* High holding force
* Up to PL e/Cat.4
* LED status indication
* Polyester housing with stainless steel head
* IP67 rating

Product identifiers

SKU: 2TLA050007R0112

Specifications

Width sensor	46
Coating housing	Uncoated
Height of sensor	160
Housing material	Plastic
Length of sensor	46
Type of interface	Other
Guard locking force	2000
With escape release	no
Type of guard locking	-
With auxiliary release	yes
With status indication	yes
Construction type housing	Special construction
Degree of protection (IP)	IP67
Type of switching contact	Other
Degree of protection (NEMA)	1
Type of electric connection	Other
Suitable for safety functions	yes
Explosion safety category for gas	-
Explosion safety category for dust	-
Number of safety auxiliary contacts	-
Ambient temperature during operating
Number of contacts as change-over contact	-
Rated operation current Ie at AC-15, 24 V	3
Rated operation current Ie at DC-13, 24 V	0.2
Rated operation current Ie at AC-15, 125 V	3
Rated operation current Ie at AC-15, 230 V	3
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at DC-13, 230 V	-
Type of interface for safety communication	Other
Number of contacts as normally open contact	4
Rated control supply voltage magnet drive DC
Number of contacts as normally closed contact	2
Rated control supply voltage magnet drive AC 50 Hz
Rated control supply voltage magnet drive AC 60 Hz
