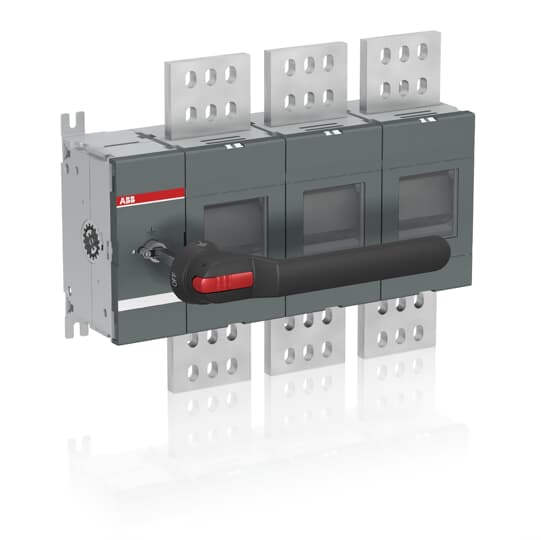

2500A 3 pole Switch Disconnector
2500A 3 pole Switch Disconnector
Front operated switch-disconnectors, OT1000...4000 Base Mounted
* Part number: OT2500E03P
* Including terminal bolt kit. In OT_P -types a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft can be adjusted to different installation depths.
* Part number: OT2500E03P
* Including terminal bolt kit. In OT_P -types a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft can be adjusted to different installation depths.
Product identifiers
SKU: 1SCA104972R1001
Specifications
| Depth | 145.5 |
| Width | 472.5 |
| Height | 376.5 |
| Interlockable | no |
| Number of poles | 3 |
| Number of switches | 1 |
| Device construction | Complete device in housing |
| Motor drive optional | no |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OT2000-2500 rev H (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE_OT2000-2500 1SCC301176D2702 C.pdf
Declaration EPD (Environmental Product Declaration)
1SCC301304D0201_OT2000-2500 PEP Ecopassport_16_03_2023_APPROVED.pdf
