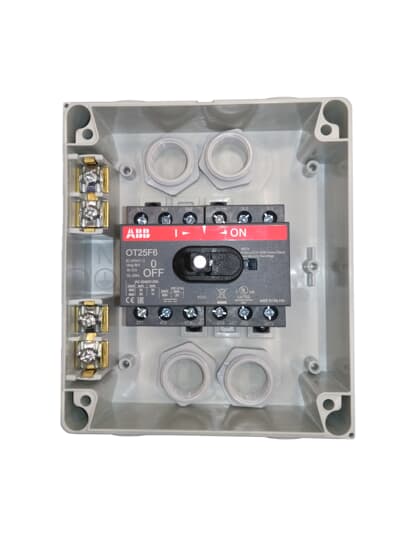

9KW 6P IP65 R/Y HANDLE
IP65 Double Insulated Load Break Switches 3 - 6 Pole 16...125 Amps
* Part number: OTP25BA6M
* IP65 rated
* Grey plastic enclosure
* Standard handle - Red/Yellow (padlockable in the off position)
* Cable entries top and bottom
* All OTP16 (excluding 3P) /25/32 all have 25/20mm reducers
* Part number: OTP25BA6M
* IP65 rated
* Grey plastic enclosure
* Standard handle - Red/Yellow (padlockable in the off position)
* Cable entries top and bottom
* All OTP16 (excluding 3P) /25/32 all have 25/20mm reducers
Product identifiers
SKU: OTP25BA6M
Categories
Features
|
Depth
|
85
|
|
Width
|
130
|
|
Height
|
150
|
|
Interlockable
|
yes
|
|
Number of poles
|
6
|
|
Number of switches
|
1
|
|
Device construction
|
Complete device in housing
|
|
Motor drive optional
|
no
|
|
Colour control element
|
Red
|
|
Motor drive integrated
|
no
|
|
Version as main switch
|
yes
|
|
Rated operating voltage
|
|
|
Type of control element
|
Turn button
|
|
Switching power at 400 V
|
9
|
|
Version as safety switch
|
no
|
|
Voltage release optional
|
no
|
|
Rated permanent current Iu
|
32
|
|
With pre-assembled cabling
|
-
|
|
Degree of protection (NEMA)
|
Other
|
|
Suitable for floor mounting
|
-
|
|
Version as reversing switch
|
no
|
|
Max. rated operation voltage Ue AC
|
750
|
|
Suitable for front mounting 4-hole
|
no
|
|
Suitable for front mounting centre
|
no
|
|
Suitable for intermediate mounting
|
-
|
|
Width in number of modular spacings
|
-
|
|
Rated operation power at AC-3, 400 V
|
-
|
|
Degree of protection (IP), front side
|
IP65
|
|
Rated operation power at AC-23, 400 V
|
9
|
|
Rated short-time withstand current lcw
|
0.5
|
|
Version as emergency stop installation
|
no
|
|
Version as maintenance-/service switch
|
yes
|
|
Rated permanent current at AC-21, 400 V
|
25
|
|
Rated permanent current at AC-23, 400 V
|
20
|
|
Conditioned rated short-circuit current Iq
|
-
|
|
Suitable for distribution board installation
|
yes
|
|
Type of electrical connection of main circuit
|
-
|
|
Number of auxiliary contacts as change-over contact
|
0
|
|
Number of auxiliary contacts as normally open contact
|
0
|
|
Number of auxiliary contacts as normally closed contact
|
0
|
