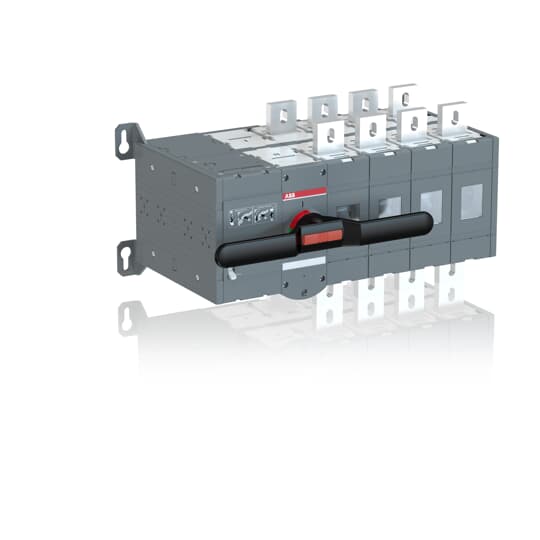

4P 1000A Motorised Changeover sw 24VDC
4P 1000A Motorised Changeover sw 24VDC
Motorised OTM800...1600 change-over switches, 3 & 4 pole, I-O-II -indication
* Part number: OTM1000E4CM24D
* Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits.
* Types OTM160-2500E_ include a clamp for the handle and spare fuses.
* Types OTM160-250E_W are equipped with extended phase distance.
* Part number: OTM1000E4CM24D
* Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits.
* Types OTM160-2500E_ include a clamp for the handle and spare fuses.
* Types OTM160-250E_W are equipped with extended phase distance.
Product identifiers
SKU: 1SCA113675R1001
Specifications
| Depth | 297 |
| Width | 587 |
| Height | 306 |
| Interlockable | yes |
| Number of poles | 4 |
| Number of switches | 1 |
| Device construction | Built-in device plug-in technique |
| Motor drive optional | no |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OTM1000-1600_CM24-48-110_ 2020-12-29.pdf
Declaration EPD (Environmental Product Declaration)
1SCC303103D0201_OTM1250E4CM_PEP Ecopassport_approved.pdf
