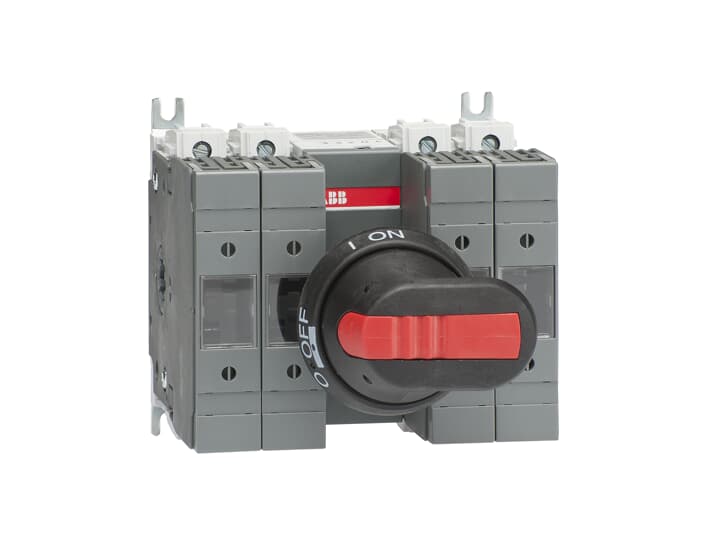

63A 4P DIN Switch fs w/ fusible 4th pole
63A 4P DIN Switch fs w/ fusible 4th pole
OS40...160 DIN Front Operated Switch Fuses - Mechanism between the poles. Protected tunnel terminals, IP20
* Part number: OS63GD22FP
* Including terminal bolt kit in OS125G...160G, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths.
* Part number: OS63GD22FP
* Including terminal bolt kit in OS125G...160G, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths.
Product identifiers
SKU: 1SCA115232R1001
Specifications
| Cable entry | Other |
| Number of poles | 4 |
| Suitable for fuses | NH000 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OS32G-63G rev Q.pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OS32-63G_ 2020-09-14 D.pdf
Declaration EPD (Environmental Product Declaration)
1SCC311195D0201_OS32-63_PEP Ecopassport_APPROVED.pdf
