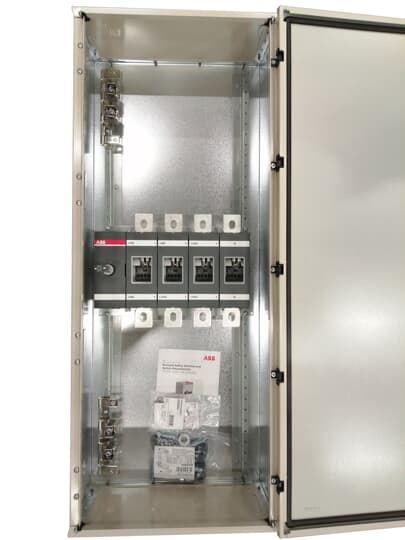

630A 4 pole enclosed switch disconnector

Link copied
SKU

Specifications

Depth 230
Width 400
Height 1000
Interlockable yes
Number of poles 4
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V 315
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting -
Max. rated operation voltage Ue AC 1000
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP65
Rated short-time withstand current lcw 20
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V 570
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

Reach Enclosed AC Switches 2024-10-20 annex.pdf

Open

Instructions for use

34OT200-1600 rev J (1).pdf

Open

Product data sheet

Open

Declaration RoHS

RoHs Declaration Enclosed AC Switches 2023-10-02 .pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE_OT630_800 Enclosed Switches and Safety Switches 1SCC340029D2704.pdf

Open
