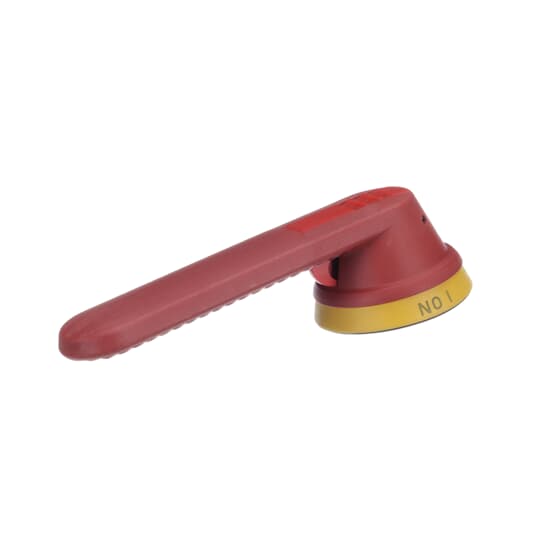

RED BUTTERFLY HANDLE ON/OFF
RED BUTTERFLY HANDLE ON/OFF
Operating handles - Pistol type handles, for base and DIN-rail mounted switches
* Part number: OHY150J12P
* Suitable for switches OT1000...2500, for shaft diameter 12 mm
* Indication OHB and OHY: I-0, ON-OFF
* IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.
* The type and the ordering numbers are for one piece.
* Part number: OHY150J12P
* Suitable for switches OT1000...2500, for shaft diameter 12 mm
* Indication OHB and OHY: I-0, ON-OFF
* IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation.
* The type and the ordering numbers are for one piece.
Product identifiers
SKU: 1SCA101586R1001
Specifications
| Colour | Red |
| With key lock | - |
| Padlock locking | - |
| With extension shaft | no |
| With restart blockage | - |
| Degree of protection (NEMA) | - |
| Suitable for emergency stop | no |
| Suitable for switch disconnector | yes |
Documents
Deeplink product page
Deeplink REACH
Reach AC Switches and Fusegear 2024-10-20 Annex.pdf
Instructions for use
34OH-200J12P rev H (1).pdf
Product data sheet
Declaration RoHS
RoHs Declaration AC Switches and Fusegear 2023-10-02.pdf
Declaration DOC CE (Declaration of conformity CE)
CE OH_ 2020.10.19 E.pdf
