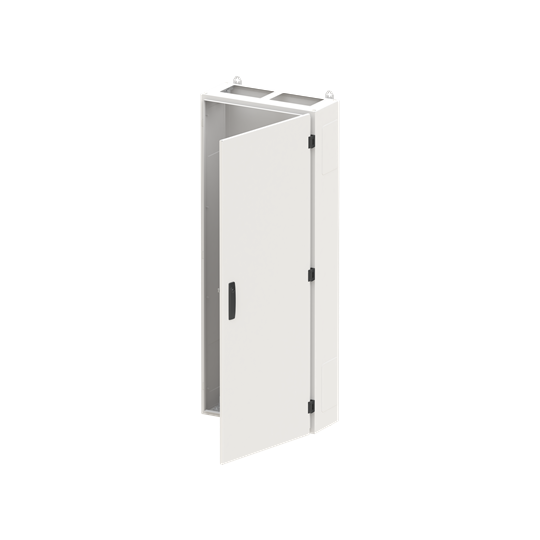

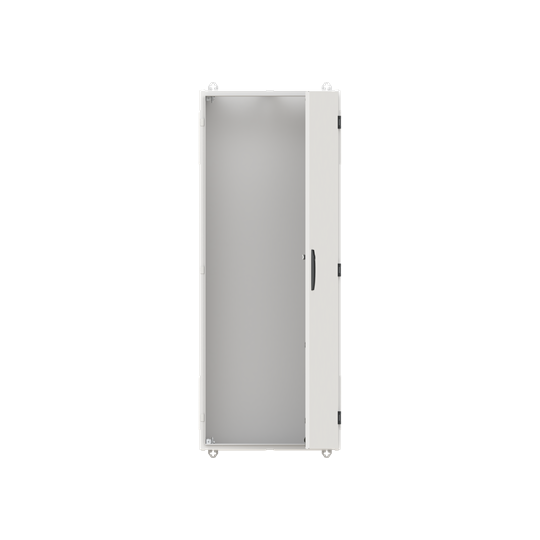

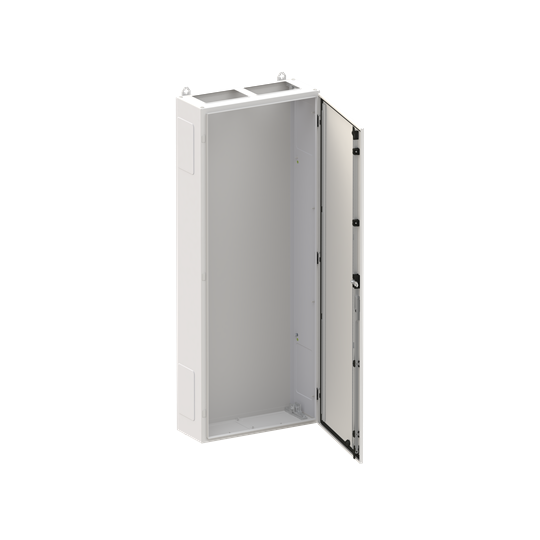

TG209G TG wall moun. PCI IP55

Name: TG209G TG wall moun. PCI IP55
Brand: ABB
SKU: 2CPX010026R9999

Product identifiers

SKU: 2CPX010026R9999

Specifications

Depth	225
Width	550
Colour	Grey
Height	1400
With lock	yes
RAL-number	7035
Cover model	With notch
Inner depth	222
Type of door	Single
Built-in depth	170
Number of rows	9
Impact strength	IK08
Mounting method	Surface mounted
Housing material	Steel plate/plastic
Type of covering	None
Circuit integrity	None
Number of modules	216
Extension possible	yes
Surface protection	Powder coating
With mounting plate	no
Nominal current (In)	-
Transparent cover/door	no
Number of conduit inlets	104
Suitable for outdoor use	no
Degree of protection (IP)	IP55
Degree of protection (NEMA)	-
Cover with overpressure release	no
Material plate thickness cabinet	1
Suitable for lightning protection	no
Material plate thickness door/cover	1.5
Width in number of modular spacings	24
Number of openings for flange plates	2
Protection class according to IEC 61140	I
