Frequency
Power loss	4.4
Voltage type	AC
Rated current	25
Rated voltage	230
Built-in depth	69
Explosion-proof	no
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	500
Additional equipment possible	yes
Width in number of modular spacings	1
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	yes
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-

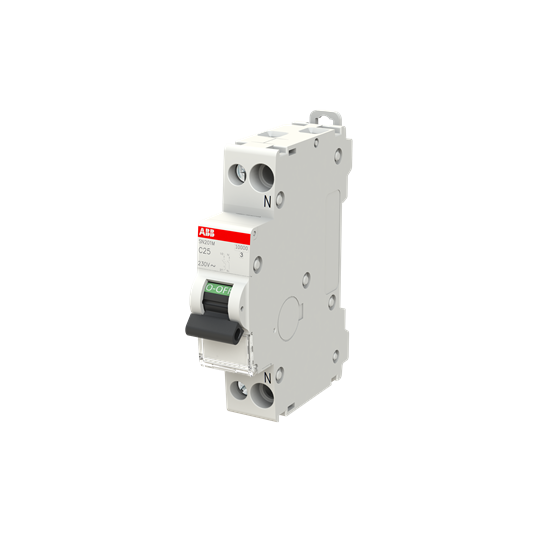

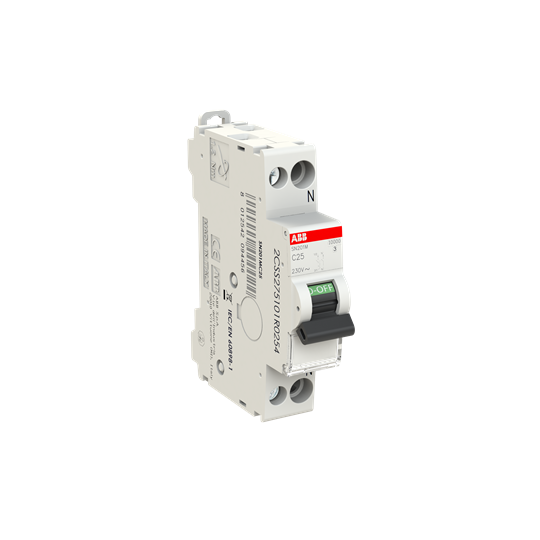

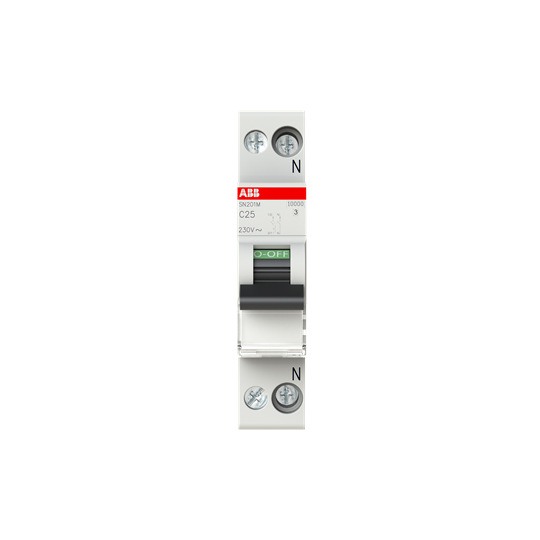

SN201MC25 SP&N MCB C25A 10KA
