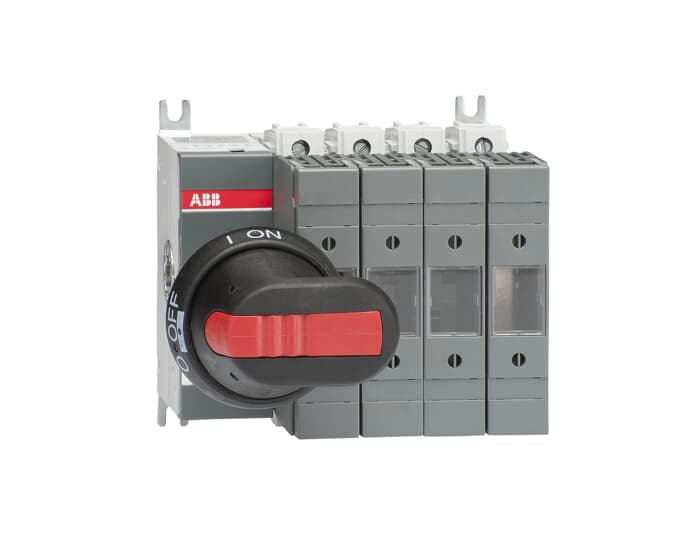

63A 4P DIN type switch fuse w/ h+s
OS40...160 DIN Front Operated Switch Fuses - Mechanism at the end of the switch. Protected tunnel terminals, IP20
* Part number: OS63GD04N2P
* Including terminal bolt kit in OS125G...160G, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths.
* Part number: OS63GD04N2P
* Including terminal bolt kit in OS125G...160G, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position.The shaft is adjustable for a range of installation depths.
Product identifiers
SKU: 1SCA115209R1001
Specifications
| Cable entry | Other |
| Number of poles | 4 |
| Suitable for fuses | NH000 |
| Motor drive optional | no |
| With error protection | - |
| Motor drive integrated | no |
| Version as main switch | yes |
| Type of control element | Long turning handle |
